Non Standard Customized H62 H65 Brass Cnc Milling Automotive Medical Metal Parts

Non Standard Customized H62 H65 Brass Cnc Milling Automotive Medical Metal Parts

Brand Name:	Yue lin sen
Model Number:	Y211
MOQ:	100pcs
Price:	0.5-20
Payment Terms:	T/T
Supply Ability:	50000000pcs

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong

Certification:

ISO9001 ISO13485

Packaging Details:

Vacuum packaging cardboard box

Highlight:

Customized H62 brass CNC milling parts

Non-standard automotive metal parts

Medical machining brass components

Product Description

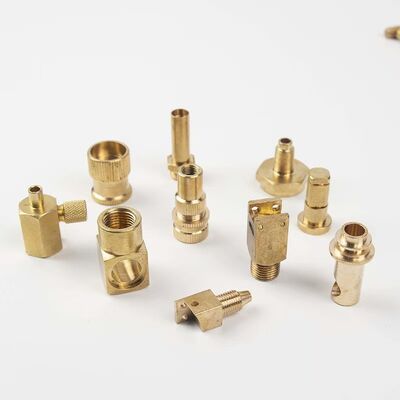

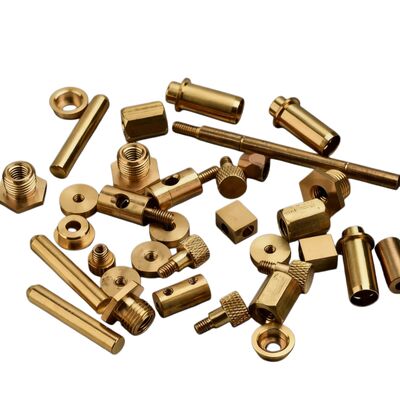

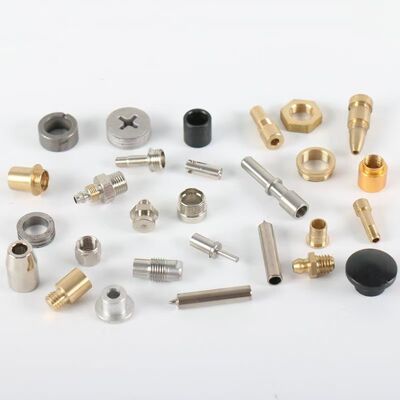

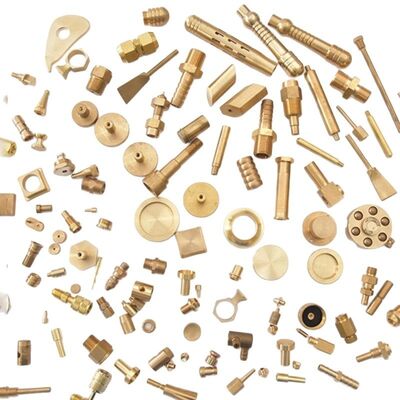

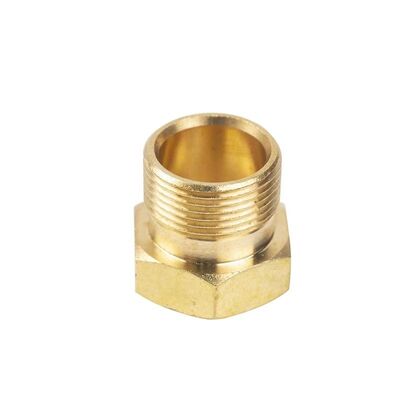

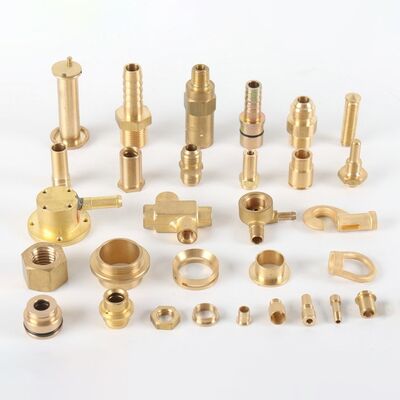

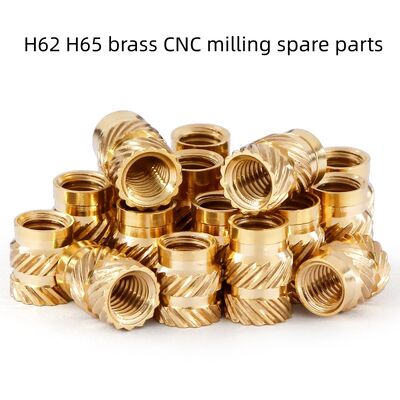

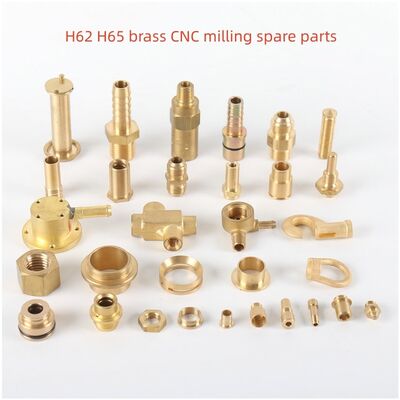

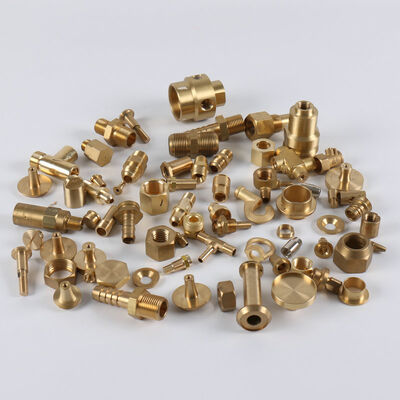

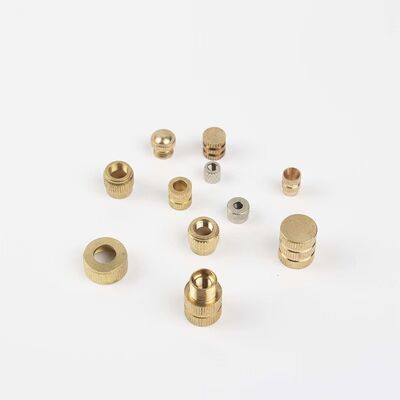

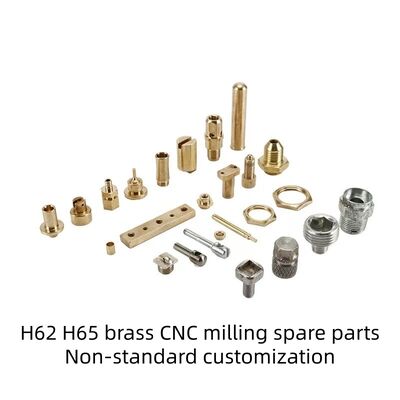

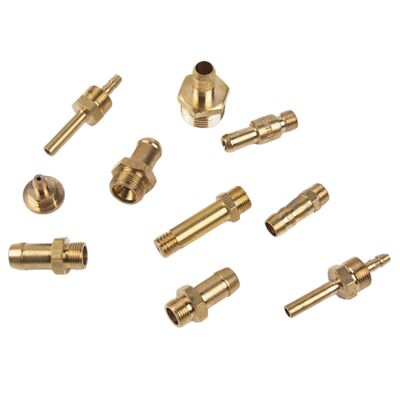

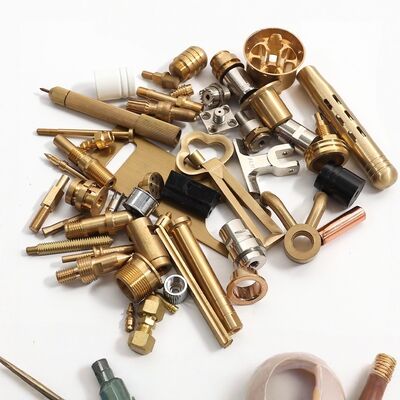

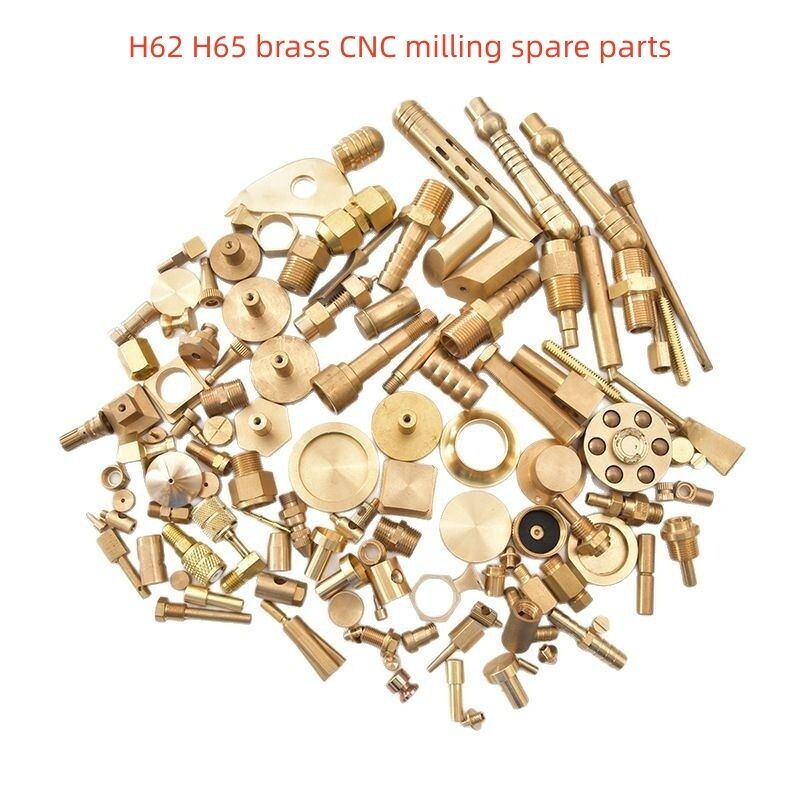

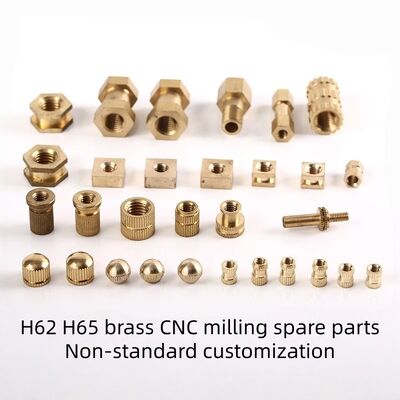

Non Standard Customized H62 H65 Brass Cnc Milling Automotive Medical Metal Parts

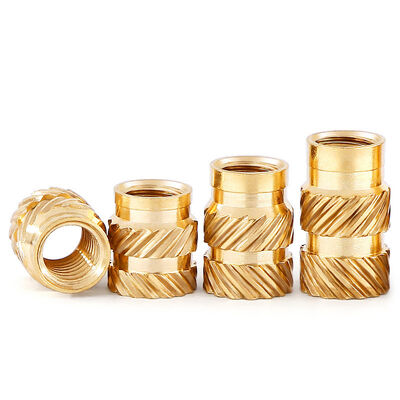

Non Standard Customized H62 H65 Brass Cnc Milling Automotive Medical Metal Parts 0

Product Description

Non-Standard Custom H62/H65 Brass CNC Milled Metal Components for Automotive & Medical Applications are high-precision, engineered parts manufactured to exact customer specifications through advanced multi-axis CNC milling technology . Utilizing two premium brass alloys—H62 (containing 60.5-63.5% copper) and H65 (containing 63.0-68.5% copper)—this service delivers components with exceptional machinability, natural corrosion resistance, and an attractive golden appearance . These brasses offer an optimal balance of strength, plasticity, and cost-effectiveness, making them ideal for both functional and aesthetic applications . From intricate automotive system components to precision medical device parts, each component is meticulously crafted to meet demanding requirements for dimensional accuracy, surface finish, and long-term reliability in critical applications .

Product Processing

Material Selection & Verification: Appropriate brass alloy (H62 or H65) is selected based on application requirements. Certified material stock (bar, rod, plate, or custom shapes) is verified for composition and cut to optimized blank sizes.
Engineering Analysis & Custom Design: Technical review of customer 3D models and 2D drawings to optimize design for manufacturability in brass, considering material characteristics such as chip formation and thermal conductivity . Custom non-standard features are carefully evaluated.
Advanced CAM Programming: Generation of optimized toolpaths using high-end CAM software, with parameters specifically tuned for brass machining—including appropriate cutting speeds, feed rates, and tool engagement strategies for excellent surface finish and chip control .
Precision CNC Milling (Core Process): Execution on advanced 3, 4, or 5-axis CNC machining centers using high-performance machining strategies:
- Adaptive Roughing: For efficient material removal with controlled chip load
- High-Speed Finishing: For achieving tight tolerances (down to ±0.005mm) and superior surface finishes
- Feature Machining: Creating complex 3D contours, pockets, threads, undercuts, precision holes, and custom non-standard geometries
- Typical Cutting Parameters: Cutting speeds of 60-120 m/min, feed rates of 0.1-0.25 mm/rev, depth of cut of 0.15-0.25 mm
Deburring & Edge Finishing: All edges are meticulously deburred by hand or using automated methods (tumbling, thermal) to ensure safe handling, proper fit, and a clean appearance .
Surface Finishing & Plating: A range of surface treatments can be applied:
- As-Machined: Brass naturally develops an attractive golden finish without extra treatment
- Polishing/Buffing: Hand polishing for smooth, shiny surfaces ideal for aesthetic components
- Plating: Nickel, chromium, gold, or silver plating for enhanced corrosion resistance, appearance, or conductivity
- Clear Coating: For cosmetic applications exposed to elements, preventing tarnish
- Passivation: For specialized applications
Cleaning: Intensive ultrasonic cleaning to remove all machining residues and surface contaminants.
Final Inspection & Documentation: Each part undergoes 100% dimensional inspection using CMMs, optical comparators, and precision gauges. Detailed inspection reports and material certifications are provided .

Product Applications

Application Area	H62 Brass Applications	H65 Brass Applications
Automotive Components	Radiator components, condenser fittings, heat exchanger parts, sensor housings, fuel system fittings, valve components, nuts, bolts, washers, hydraulic/pneumatic fittings, brake system components, electrical terminals, connector housings	Fuel system parts requiring higher formability, decorative interior trim, complex-shaped fittings, parts requiring deep drawing before final machining, electrical components where higher copper content is beneficial
Medical Devices	Surgical instrument handles, diagnostic equipment components, medical device housings, fitting systems, dental instrument parts, laboratory equipment connectors, non-implantable surgical tools, medical gas system fittings	Precision instrument components requiring better cold-forming properties, complex medical device connectors, parts requiring enhanced corrosion resistance
Industrial Equipment	Pneumatic fittings, hydraulic components, valve bodies, pump parts, mechanical components, screw machine parts, gauge components, timing mechanisms, bearings, bushings, wear plates	Instrument parts, precision mechanical components, complex-shaped parts requiring deeper draws, parts with higher ductility requirements
Electronics & Electrical	Connectors, terminals, switch components, electrical fittings, conductive parts, RF components, shielding enclosures	Higher conductivity connectors, precision electronic components, parts requiring better formability for complex shapes
Aerospace & Defense	Fittings, connectors, non-structural components, instrument parts, cartridge cases (historically)	Cartridge cases (H65 brass specifically), complex-shaped components
Architectural & Decorative	Door and window fittings, locks, handles, plumbing fittings, decorative trim, plaques, nameplates, medals	Decorative elements requiring deeper draws, complex-shaped architectural hardware
Marine	Condenser tubes, marine hardware, fittings (with appropriate protective coatings recommended)	Marine fittings requiring better corrosion resistance in certain environments
Consumer Goods	Watch components, musical instrument parts, camera parts, zippers, buttons, clasps, high-end hardware	Jewelry components, fashion accessories, zippers, precision consumer goods

Product Technical Parameters (Detailed Table)

Category	Parameter	H62 Brass	H65 Brass
Material Properties	Copper Content	60.5 – 63.5%	63.0 – 68.5%
	Zinc Content	Balance (approx. 37-39%)	Balance (approx. 31-37%)
	Key Characteristics	Good strength, excellent plasticity, cost-effective, good corrosion resistance	Excellent plasticity, superior cold-forming properties, good strength, slightly better corrosion resistance than H62
	Density	8.43 g/cm³	8.47 g/cm³
	Melting Point	905 – 930°C	966 – 1001°C
Mechanical Properties	Tensile Strength (Soft/Y2)	330 – 400 MPa (soft), 430 – 600 MPa (hard)	290 – 400 MPa (soft), 400 – 570 MPa (hard)
	Yield Strength	~150 – 200 MPa (soft)	~150 – 200 MPa (soft)
	Elongation	15 – 45% (varies with temper)	3 – 45% (up to 45% in soft state)
	Hardness	80 – 110 HB (soft), 120 – 150 HB (hard)	55 – 190 HV (varies with temper)
Physical Properties	Electrical Conductivity	~22% IACS	~32% IACS (M)
	Thermal Conductivity	115 – 120 W/(m·K)	140 – 142 W/(m·K)
	Coefficient of Thermal Expansion	20.6×10⁻⁶/℃ (20-300℃)	19.1×10⁻⁶/℃ (20-300℃)
CNC Milling Capabilities	Process	3-Axis, 4-Axis, 5-Axis Simultaneous CNC Milling, CNC Swiss Machining, Multi-Spindle Machining	3-Axis, 4-Axis, 5-Axis Simultaneous CNC Milling, CNC Swiss Machining, Multi-Spindle Machining
	Machinability	Excellent (rated 80-100% relative to free-cutting brass)	Excellent (rated 80-90% relative to free-cutting brass)
	Cutting Speed (Vc)	60 – 150 m/min typical	60 – 150 m/min typical
	Feed Rate	0.1 – 0.3 mm/rev typical	0.1 – 0.3 mm/rev typical
	Depth of Cut	0.15 – 0.3 mm typical (finishing)	0.15 – 0.3 mm typical (finishing)
Precision & Tolerances	Standard Machining Tolerance	±0.0125 mm (±0.0005")	±0.0125 mm (±0.0005")
	High-Precision Tolerance	±0.005 mm (±0.0002")	±0.005 mm (±0.0002")
	Bore/Hole Tolerance	H7 (drilled) to H6 (reamed)	H7 (drilled) to H6 (reamed)
	Geometric Tolerances	Full GD&T capability per ASME Y14.5 / ISO 1101	Full GD&T capability per ASME Y14.5 / ISO 1101
Surface Finish	As-Milled (Standard)	Ra 0.8 – 1.6 µm (32 – 63 µin)	Ra 0.8 – 1.6 µm (32 – 63 µin)
	Fine Machining	Ra 0.4 – 0.8 µm (16 – 32 µin)	Ra 0.4 – 0.8 µm (16 – 32 µin)
	Polished	Ra ≤ 0.2 µm (≤ 8 µin) achievable	Ra ≤ 0.2 µm (≤ 8 µin) achievable
Threading Capabilities	Thread Types	Metric (M1.0 – M30), UNF/UNC (#0 – 1"), NPT (1/8" – 1"), BSPP, BSPT, ACME, Trapezoidal, custom	Metric (M1.0 – M30), UNF/UNC (#0 – 1"), NPT (1/8" – 1"), BSPP, BSPT, ACME, Trapezoidal, custom
	Thread Milling	Preferred for precision, excellent finish, burr-free threads	Preferred for precision, excellent finish, burr-free threads
	Thread Rolling	Available for high-volume production	Available for high-volume production
Surface Treatments	Standard Finishes	As-machined (natural golden), Bead Blasted, Brushed	As-machined (natural golden), Bead Blasted, Brushed
	Plating Options	Nickel, Chrome, Gold, Silver, Tin, Zinc, Electroless Nickel	Nickel, Chrome, Gold, Silver, Tin, Zinc, Electroless Nickel
	Coatings	Clear coating (lacquer, epoxy) for tarnish prevention, PTFE for lubricity	Clear coating (lacquer, epoxy) for tarnish prevention, PTFE for lubricity
	Special Processes	Passivation, Antiquing (darkening), Chemical coloring	Passivation, Antiquing (darkening), Chemical coloring
Dimensional Capacity	Maximum Part Size	Up to 1500 x 800 x 600 mm (59" x 31" x 24")	Up to 1500 x 800 x 600 mm (59" x 31" x 24")
	Minimum Feature Size	0.2 mm (0.008")	0.2 mm (0.008")
	Minimum Hole Diameter	0.3 mm (0.012")	0.3 mm (0.012")
	Maximum Part Weight	Up to 300 kg (660 lbs)	Up to 300 kg (660 lbs)
Quality Assurance	Inspection Equipment	CMM (Coordinate Measuring Machine), Optical Comparator, Vision System, Surface Roughness Tester, Hardness Tester, Thread Gauges, Micrometers, Calipers	CMM (Coordinate Measuring Machine), Optical Comparator, Vision System, Surface Roughness Tester, Hardness Tester, Thread Gauges, Micrometers, Calipers
	Material Certification	Mill Test Certificate (MTC) per EN 10204 3.1 provided	Mill Test Certificate (MTC) per EN 10204 3.1 provided
	Documentation	First Article Inspection (FAI) Report per AS9102, Dimensional Report, Certificate of Conformance (CoC), Material Certificates	First Article Inspection (FAI) Report per AS9102, Dimensional Report, Certificate of Conformance (CoC), Material Certificates
	Quality Standards	ISO 9001:2015 Certified. ISO 13485 (Medical), IATF 16949 (Automotive) compliant processes available	ISO 9001:2015 Certified. ISO 13485 (Medical), IATF 16949 (Automotive) compliant processes available
Production Details	Lead Time (Prototype)	5 – 12 business days (complexity dependent)	5 – 12 business days (complexity dependent)
	Lead Time (Production)	2 – 5 weeks (volume dependent)	2 – 5 weeks (volume dependent)
	Minimum Order Quantity	1 piece (prototype) to production volumes	1 piece (prototype) to production volumes
	File Formats Accepted	STEP, IGES, SLDPRT, X_T, DWG, DXF, PDF, 3D models, 2D drawings	STEP, IGES, SLDPRT, X_T, DWG, DXF, PDF, 3D models, 2D drawings
Secondary Services	Assembly	Press-fit inserts, fasteners, welding (specialized), marking	Press-fit inserts, fasteners, welding (specialized), marking
	Testing	Dimensional validation, leak testing (for sealed components), pressure testing	Dimensional validation, leak testing (for sealed components), pressure testing
	Marking	Laser marking, dot peen marking, stamping	Laser marking, dot peen marking, stamping
Special Advantages	Biocompatibility	Suitable for external medical device components (not for implantation)	Suitable for external medical device components (not for implantation)
	Antimicrobial Properties	Brass has natural antimicrobial properties	Brass has natural antimicrobial properties
	Aesthetic Appeal	Attractive golden color, can be polished to high shine, develops natural patina over time	Slightly richer color due to higher copper content, excellent polishability
