H62 H65 Brass Purple Copper Cnc Milling Automotive Medical Metal Parts

H62 H65 Brass Purple Copper Cnc Milling Automotive Medical Metal Parts

Brand Name:	yeu lin sen
Model Number:	Y6222
MOQ:	100 pcs
Price:	0.5-20
Payment Terms:	T/T
Supply Ability:	50000000pcs

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong

Certification:

ISO9001 ISO13485

Surface Treatment:

Polished,anodizing

Productname:

Medical Machining Parts

Trademark:

Yue Lin Sen

Material Capabilities:

Aluminum Product,copper Product

Technique:

Cold Drawn

Hs Code:

7301200000

Biocompatibility:

Meets Medical Grade Standards

Tolerance:

±0.01 Mm

Process:

Cnc Machining+deburrs

Qualitycontrol:

100% Inspection, CMM Measurement

Payment Term:

TT Westerm Union MomeyGram Paypal

Laser Cutting Tolerance:

± 0.10 Mm (± 0.004

Transport Package:

Plastic Box; Wooden Box

Specification:

200*300*260

Customization:

Fully Customizable Designs

Packaging Details:

Vacuum packaging cardboard box

Product Description

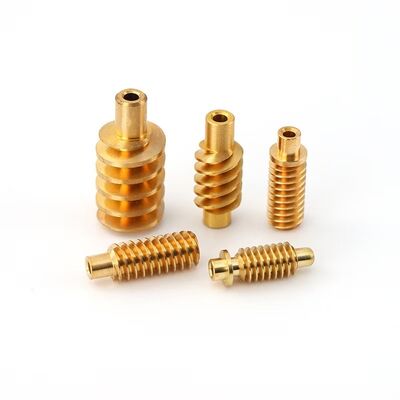

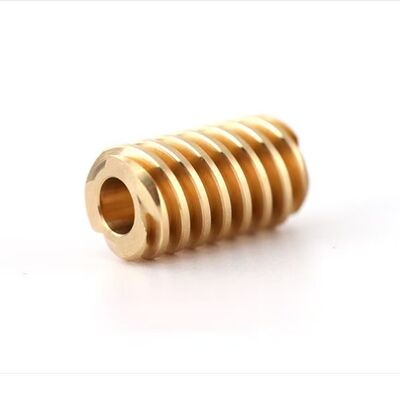

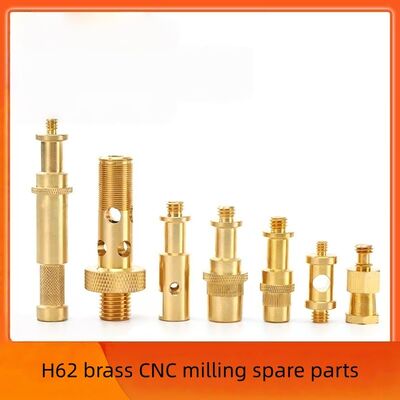

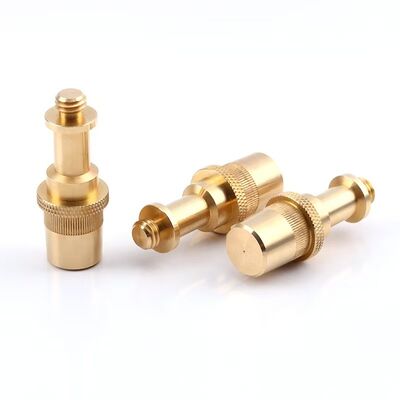

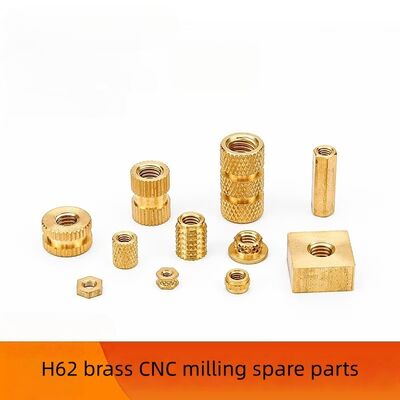

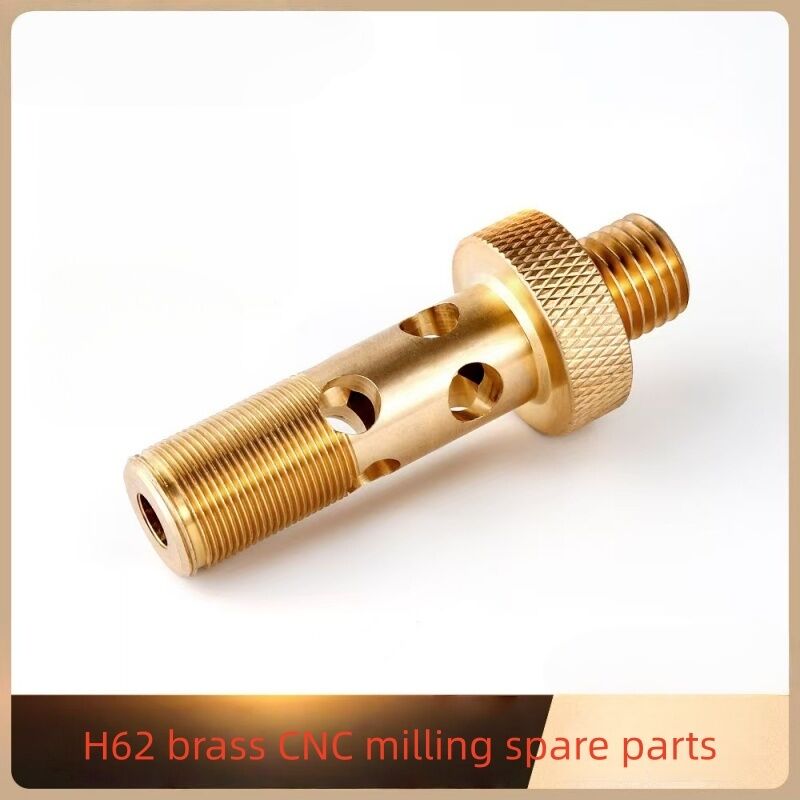

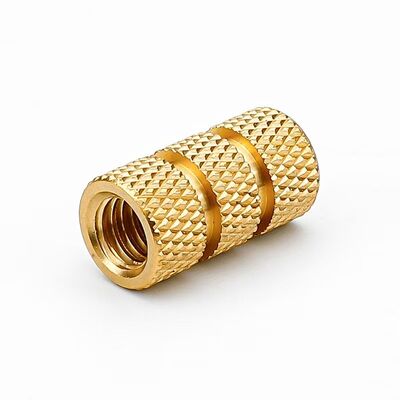

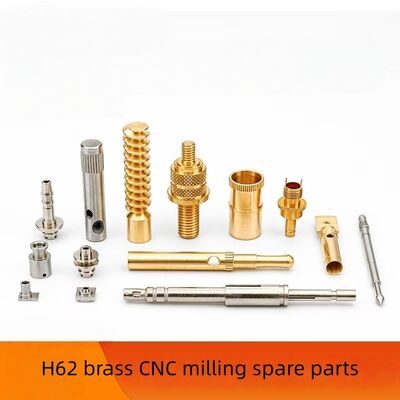

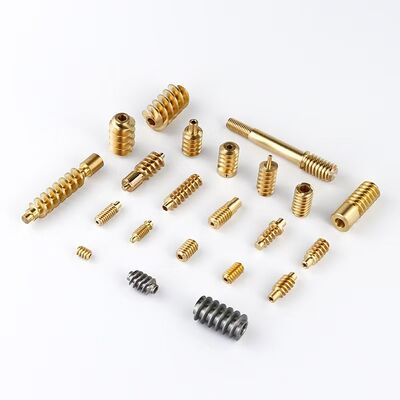

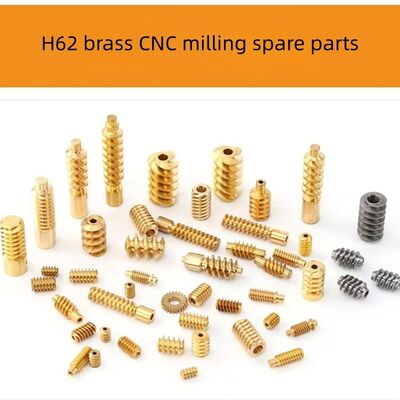

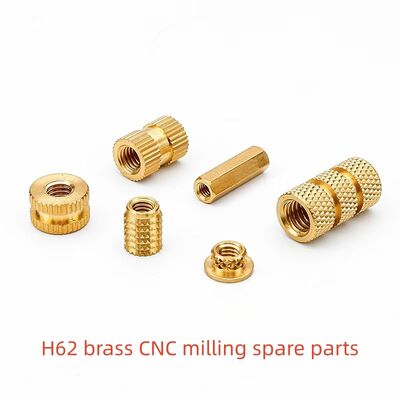

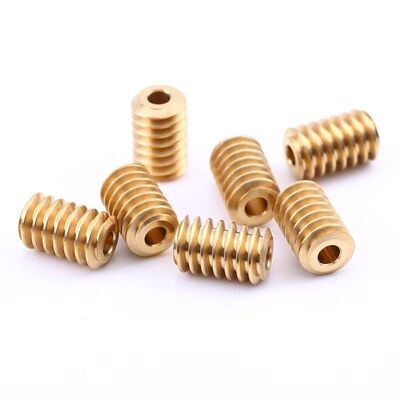

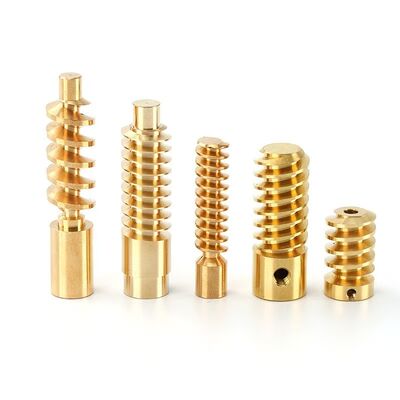

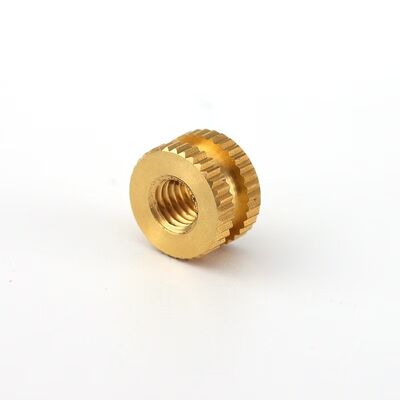

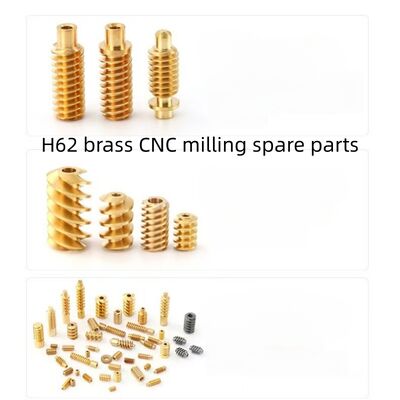

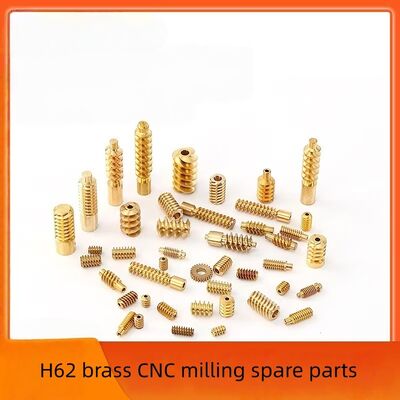

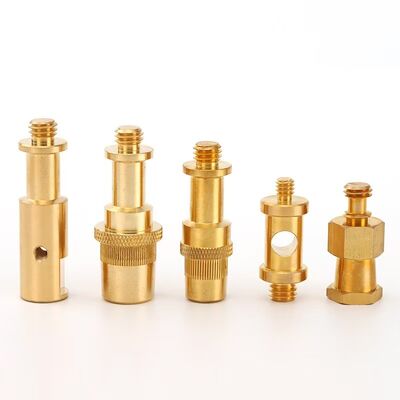

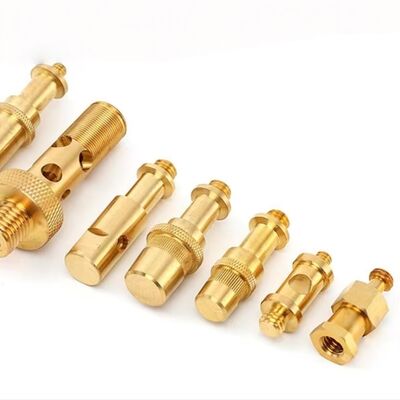

H62 H65 Brass Purple Copper Cnc Milling Automotive Medical Metal Parts

H62 H65 Brass Purple Copper Cnc Milling Automotive Medical Metal Parts 0

Product Description

H62/H65 Brass and Pure Copper (Red Copper) CNC Milled Automotive & Medical Metal Components are high-performance, precision-engineered parts manufactured through advanced multi-axis CNC milling technology. Utilizing two distinct material families—H62 and H65 brass (copper-zinc alloys) and pure copper (also known as red or purple copper)—this service delivers components with exceptional electrical and thermal conductivity, natural corrosion resistance, and excellent machinability. H62 and H65 brasses offer a balance of strength, plasticity, and cost-effectiveness, while pure copper provides superior conductivity for specialized applications. From complex automotive system parts to precision medical device components, each part is meticulously crafted to meet exacting specifications, ensuring reliability and performance in critical applications.

Product Processing

Material Selection & Verification: Appropriate copper alloy (H62 brass, H65 brass, or pure copper) is selected based on application requirements (conductivity, strength, corrosion resistance). Certified material stock is verified and cut to optimized blank sizes.
Engineering Analysis & DFM: Technical review of 3D models and drawings to optimize design for manufacturability in copper alloys, considering material-specific characteristics such as chip formation and thermal conductivity.
Advanced CAM Programming: Generation of optimized toolpaths using high-end CAM software, with full simulation to prevent collisions and ensure efficient material removal. Parameters are tuned specifically for brass and copper machining .
Precision CNC Milling (Core Process): Execution on advanced 3, 4, or 5-axis CNC machining centers using high-performance machining strategies :
- Adaptive Roughing: For efficient material removal with controlled chip load
- High-Speed Finishing: For achieving tight tolerances (down to ±0.005mm) and excellent surface finishes
- Feature Machining: Creating complex 3D contours, pockets, threads, and precision holes
- Cutting Parameters: Typical cutting speeds of 60-120 m/min, feed rates of 0.1-0.25 mm/rev, and depth of cut of 0.15-0.25 mm
Deburring & Edge Finishing: All edges are meticulously deburred by hand or using automated methods (tumbling, thermal) to ensure safe handling and proper fit.
Surface Finishing & Plating: A range of surface treatments can be applied:
- As-Machined: Brass and copper naturally develop attractive finishes even without extra treatment
- Polishing/Buffing: Hand polishing for smooth, shiny surfaces ideal for aesthetic components
- Plating: Nickel, chromium, gold, or silver plating for enhanced corrosion resistance, appearance, or conductivity
- Clear Coating: For cosmetic applications exposed to elements
- Passivation: For pure copper components
Cleaning: Intensive ultrasonic cleaning to remove all machining residues and surface contaminants.
Final Inspection & Documentation: Each part undergoes final dimensional inspection using CMMs, optical comparators, and gauges. Detailed inspection reports and material certifications are provided.

Product Applications

Application Area	H62/H65 Brass Applications	Pure Copper (Red Copper) Applications
Medical Devices	Surgical instrument handles, diagnostic equipment components, medical device housings, fitting systems, dental instrument parts	MRI components, grounding contacts, specialized surgical tools requiring high conductivity
Automotive	Radiator components, condenser tubes, heat exchanger parts, sensor housings, fuel system fittings, valve components, nuts, bolts, washers	High-power electrical connectors, battery terminals, cooling system components, conductive busbars
Electronics & Electrical	Conductive terminals, switch contacts, instrument enclosures, connector housings, electrical fittings	High-conductivity current-carrying components, busbars, heat sinks, RF shielding components, waveguide parts
Industrial Equipment	Pump bodies, valves, mechanical parts, gears, screw machine parts, stamped components	Heat exchanger components, induction coil parts, electrical distribution components
Aerospace & Defense	Cartridge cases (H65), weapon components, instrument parts	Specialized electrical components, thermal management parts
Architectural & Decorative	Door and window fittings, locks, plumbing fittings, decorative trim, medals, plaques	Decorative elements requiring natural copper color, architectural accents
Marine	Condenser tubes, plumbing fittings (with protective coating recommended)	Limited use; pure copper has better corrosion resistance than brass in some marine applications

Product Technical Parameters (Detailed Table)

Category	Parameter	H62 Brass	H65 Brass	Pure Copper (Red Copper)
Material Properties	Grade/Composition	H62 (60.5-63.5% Cu, balance Zn)	H65 (63.0-68.5% Cu, balance Zn)	Cu ≥ 99.9%
	Key Characteristics	Good strength, plasticity, cost-effective	Excellent plasticity, best formability among brasses	Highest electrical/thermal conductivity, soft, excellent corrosion resistance
	Density	8.43-8.47 g/cm³	8.47 g/cm³	8.96 g/cm³
	Melting Point	905-930°C	966-1001°C	1084.62°C
Mechanical Properties	Tensile Strength	330-600 MPa (varies with condition)	290-570 MPa (varies with condition)	220-300 MPa (annealed, varies with temper)
	Yield Strength	~150-200 MPa	150-200 MPa	70-150 MPa (varies with temper)
	Elongation	10-45% (varies with condition)	3-45% (up to 45% in soft state)	10-45% (varies with temper)
	Hardness	80-110 HB	55-190 HV	40-90 HB (varies with temper)
Physical Properties	Electrical Conductivity	~22% IACS	~32% IACS (M)	~100% IACS
	Thermal Conductivity	115-120 W/(m·K)	140-142 W/(m·K)	401 W/(m·K)
	Thermal Expansion	20.6×10⁻⁶/℃ (20-300℃)	19.1×10⁻⁶/℃ (20-300℃)	16.5 µm·m⁻¹·K⁻¹ (25°C)
CNC Milling Capabilities	Process	3-Axis, 4-Axis, 5-Axis Simultaneous CNC Milling	3-Axis, 4-Axis, 5-Axis Simultaneous CNC Milling	3-Axis, 4-Axis, 5-Axis Simultaneous CNC Milling
	Machinability	Excellent (lead content improves machinability)	Excellent	Good (requires sharp tools due to softness/gumminess)
	Cutting Speed (Vc)	60-120 m/min typical	60-120 m/min typical	50-100 m/min typical (requires sharp tools)
	Feed Rate	0.1-0.25 mm/rev typical	0.1-0.25 mm/rev typical	0.1-0.2 mm/rev typical
	Depth of Cut	0.15-0.25 mm typical	0.15-0.25 mm typical	0.1-0.2 mm typical
	Positioning Accuracy	±0.005 mm	±0.005 mm	±0.005 mm
Precision & Tolerances	Standard Tolerance	±0.0125 mm (±0.0005")	±0.0125 mm (±0.0005")	±0.0125 mm (±0.0005")
	Precision Tolerance	±0.005 mm (±0.0002")	±0.005 mm (±0.0002")	±0.005 mm (±0.0002")
	Hole Tolerance	H7 (drilled) to H6 (reamed)	H7 (drilled) to H6 (reamed)	H7 (drilled) to H6 (reamed)
	Geometric Tolerances	Per ASME Y14.5 / ISO 1101	Per ASME Y14.5 / ISO 1101	Per ASME Y14.5 / ISO 1101
Threading Capabilities	Thread Types	Metric (M1.6-M30), UNF/UNC, NPT, BSPP	Metric (M1.6-M30), UNF/UNC, NPT, BSPP	Metric (M1.6-M30), UNF/UNC, NPT, BSPP
	Thread Milling	Preferred for precision	Preferred for precision	Recommended (avoids tearing)
Surface Treatments	Standard Finishes	As-machined, polished, bead blasted	As-machined, polished, bead blasted	As-machined, polished, bead blasted
	Plating Options	Nickel, Chrome, Gold, Silver	Nickel, Chrome, Gold, Silver	Nickel, Gold, Silver, Tin
	Coatings	Clear coating for outdoor protection	Clear coating for outdoor protection	Anti-tarnish coating, lacquer
Dimensional Capacity	Maximum Part Size	Up to 1500 x 800 x 600 mm	Up to 1500 x 800 x 600 mm	Up to 1500 x 800 x 600 mm
	Maximum Part Weight	Up to 300 kg	Up to 300 kg	Up to 300 kg
Quality Assurance	Inspection Equipment	CMM, Optical Comparator, Surface Roughness Tester, Thread Gauges	CMM, Optical Comparator, Surface Roughness Tester, Thread Gauges	CMM, Optical Comparator, Surface Roughness Tester, Thread Gauges
	Material Certification	Mill Test Certificate (MTC) per EN 10204 3.1 provided	Mill Test Certificate (MTC) per EN 10204 3.1 provided	Mill Test Certificate (MTC) per EN 10204 3.1 provided
	Documentation	FAI Report, Dimensional Report, CoC	FAI Report, Dimensional Report, CoC	FAI Report, Dimensional Report, CoC
	Quality Standards	ISO 9001, ISO 13485 (medical) compliant processes available	ISO 9001, ISO 13485 (medical) compliant processes available	ISO 9001, ISO 13485 (medical) compliant processes available
Production Details	Lead Time (Prototype)	3-10 business days	3-10 business days	3-10 business days
	Lead Time (Production)	2-5 weeks (volume dependent)	2-5 weeks (volume dependent)	2-5 weeks (volume dependent)
	File Formats Accepted	STEP, IGES, SLDPRT, X_T, DWG, DXF, PDF	STEP, IGES, SLDPRT, X_T, DWG, DXF, PDF	STEP, IGES, SLDPRT, X_T, DWG, DXF, PDF
