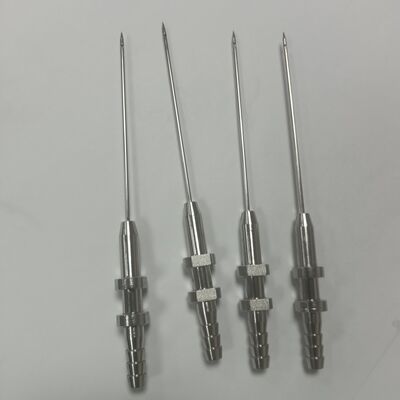

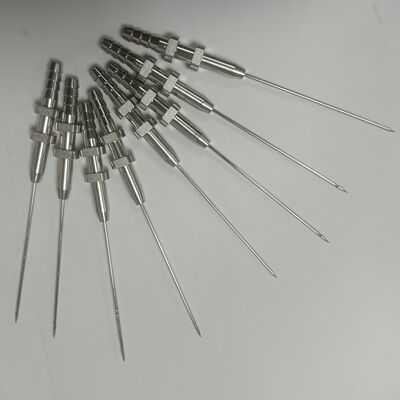

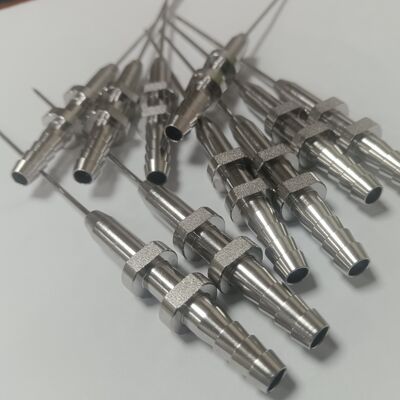

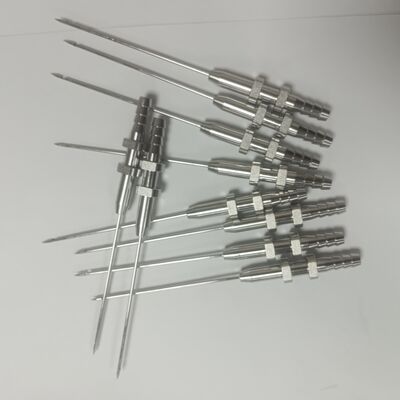

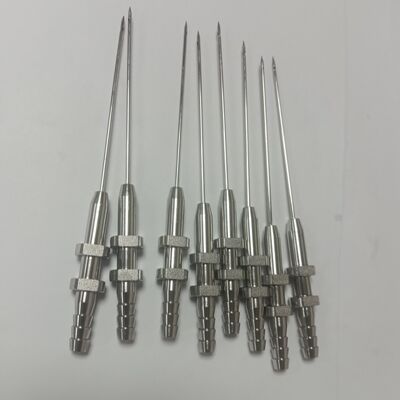

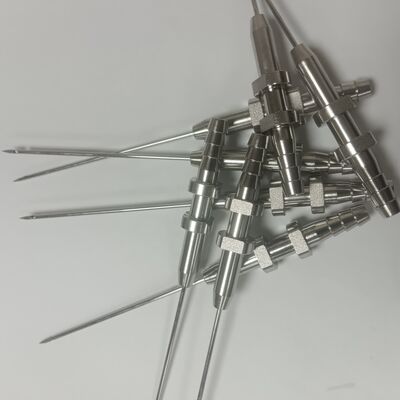

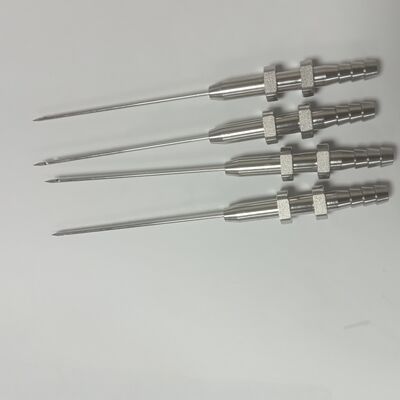

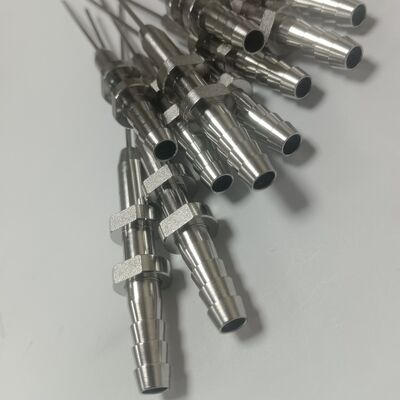

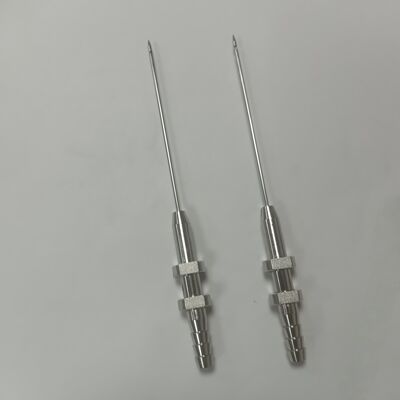

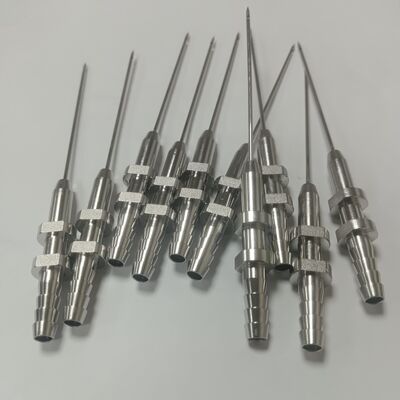

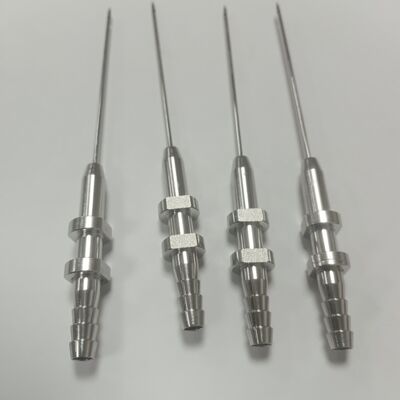

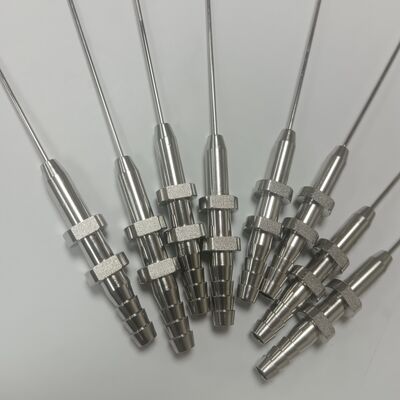

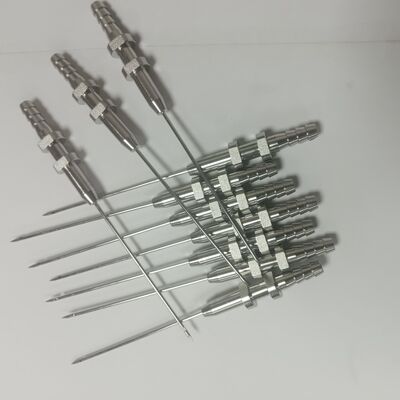

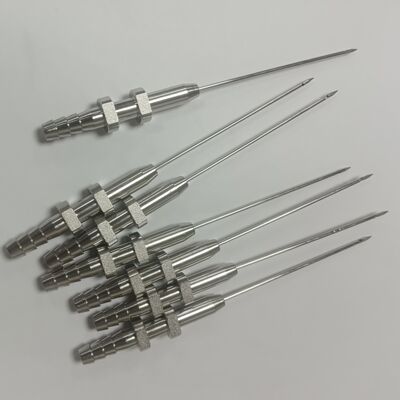

316L Stainless Steel CNC Milling Biocompatible Capillary Tube Filling Needle for Medical Applications

316L Stainless Steel CNC Milling Biocompatible Capillary Tube Filling Needle for Medical Applications

Nome da marca:	Yue lin sen
Número do modelo:	Y2661
MOQ:	100 unidades
Preço:	0.5-20
Condições de pagamento:	T/T
Capacidade de abastecimento:	50000000pcs

Informações detalhadas

Descrição do produto

Informações detalhadas

Lugar de origem:

Guangdong

Certificação:

ISO9001 ISO13485

forma:

Círculo

Controle de qualidade:

100% de inspeção Remessa Remessa

Tamanho:

Personalizado

Biocompatibilidade:

Atende aos padrões ASTM F138

Acabamento de superfície:

Ra 0,8 - 1,6 µm

Tolerância de trituração do CNC:

± 0,05 mm (± 0,002

Processo de fabrico:

Usinagem CNC, Fresagem, Torneamento

Processo:

Usinagem CNC + rebarbas

Espessura da parede:

0,1 mm - 3,0 mm

Tipo:

Usinagem CNC

Tolerância ao corte a laser:

± 0,10 mm (± 0,004

Prazo de Pagamento:

União MomeyGram Paypal do TT Westerm

Faixa de tamanho:

Tamanhos personalizados disponíveis, normalmente de 1 mm a 300 mm

Recurso:

Resistente ao deslizamento

Composição:

Aço inoxidável

Detalhes da embalagem:

Caixa de papelão para embalagem a vácuo

Destacar:

316L Stainless Steel Capillary Tube

CNC Milling Filling Needle

Biocompatible Medical Needle

Descrição do produto

316L Stainless Steel Capillary Tube Medical Parts CNC Milling Filling Needle

Precision-engineered 316L stainless steel capillary tubing component with CNC-milled features for accurate, sterile liquid transfer in medical, pharmaceutical, and laboratory applications.

Product Overview

This precision medical filling needle utilizes 316L stainless steel capillary tubing and advanced CNC milling to create an integrated assembly with sharp, precise tip, controlled internal lumen, and custom external features. Designed for applications requiring high corrosion resistance, biocompatibility, and reliable performance with sensitive fluids.

Manufacturing Process

Material Preparation: Selection and cutting of certified 316L stainless steel capillary tubing (ASTM A269) to precise length
Precision Tip Machining: Micro-machining techniques to create sharp beveled points, blunt polished ends, or specialized geometries
Body/Feature Milling: CNC milling of flats, grooves, shoulders, or mounting features for assembly integration
Hub/Connector Fabrication: Machining and permanent attachment of hubs via laser welding, press-fitting, or adhesive bonding
Internal Lumen Polishing: Electropolishing of internal bore for smooth, non-stick fluid flow
Surface Finishing: Full component electropolishing and passivation for maximum corrosion resistance
Cleaning & Sterilization: Ultrasonic cleaning and validation for Gamma irradiation or Ethylene Oxide sterilization
Functional Testing: Flow rate verification, leak testing, and tip sharpness assessment

Applications

Pharmaceutical aseptic filling of vials, syringes, or cartridges
In-Vitro Diagnostics (IVD) sample probes and reagent dispensers
Microfluidic device interfaces and connections
Laboratory automation and liquid handling robots
Medical device drug delivery systems
Medical-grade adhesive and sealant dispensing

Technical Specifications

Parameter Category	Specification	Details & Options
Material	Primary Material	316L Stainless Steel Capillary Tubing (Low Carbon, ASTM A269). Superior corrosion resistance and excellent biocompatibility (ISO 10993 compliant)
Construction	Method	Hybrid: Combines capillary tubing with CNC milled features (tip, hub, body details)
Needle Tip	Tip Types	Sharp Bevel (Hypodermic) for septum piercing Blunt/Polished (Cannula) for existing openings Side-Bore/Deflected for specific flow direction
Tubing Specifications	Outer Diameter (OD)	Standard Range: 0.5 mm (25G) to 2.0 mm (14G)
Tubing Specifications	Inner Diameter (ID) / Lumen	Customizable: Typical range 0.2 mm to 1.5 mm, dictates flow rate
Dimensions	Overall Length	Common: 20 mm to 150 mm, fully customizable
Surface Finish	Internal Lumen	Electropolished to Ra ≤ 0.2 µm for smooth flow and easy cleaning
Surface Finish	External Surface	Electropolished & Passivated, Ra ≤ 0.4 µm
Tolerances	Critical Dimensions	OD/ID: ±0.02 mm, Length: ±0.1 mm, Concentricity: < 0.05 mm TIR
Sterilization	Method	Validated for Gamma Irradiation (25 kGy) and Ethylene Oxide (EtO)
Quality & Compliance	Biocompatibility	ISO 10993 certified with full material lot traceability

Key Advantage

The combination of 316L material providing essential corrosion resistance and biocompatibility with CNC milling process enables creation of complex, integrated components beyond simple cut-and-polished needles.
