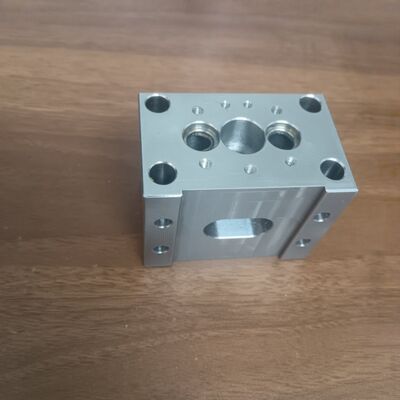

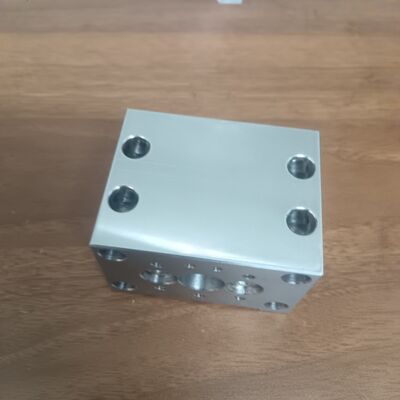

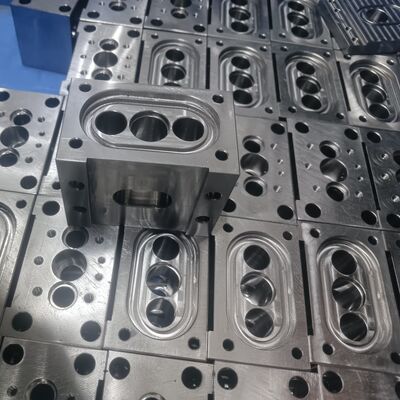

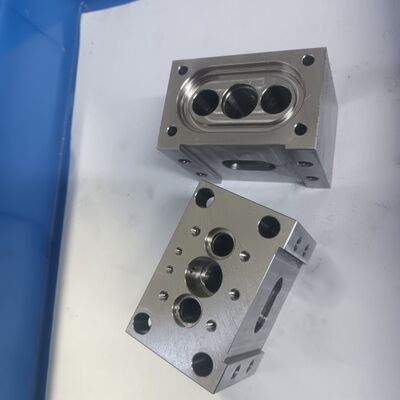

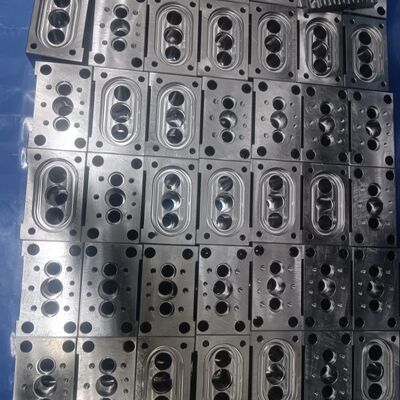

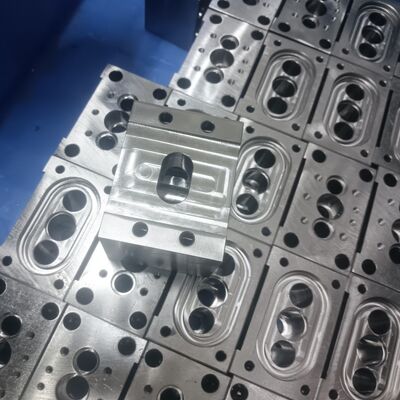

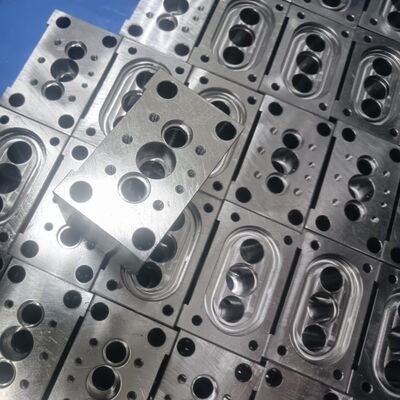

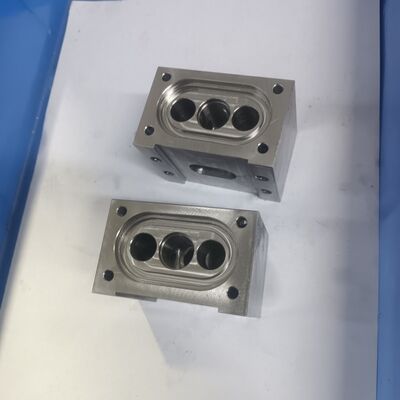

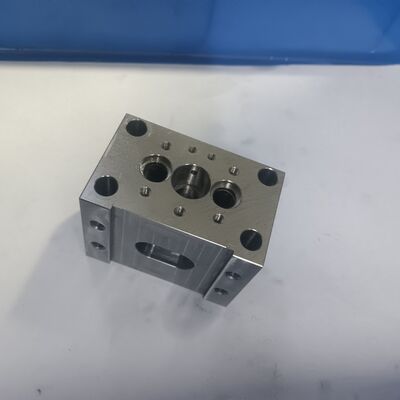

Grade 304 Stainless Steel Biocompatible CNC Milling Parts with Tight Tolerances for Medical Applications

Grade 304 Stainless Steel Biocompatible CNC Milling Parts with Tight Tolerances for Medical Applications

Nome da marca:	yue lin sen
Número do modelo:	Y6222
MOQ:	100 unidades
Preço:	0.5-20
Condições de pagamento:	T/T
Capacidade de abastecimento:	8000000pcs

Informações detalhadas

Descrição do produto

Informações detalhadas

Lugar de origem:

Guangdong

Certificação:

ISO 9001 ISO 13485

forma:

Círculo

Padrão:

Peças não padronizadas

Personalização:

Totalmente personalizável de acordo com as especificações do cliente

Processo de fabrico:

Usinagem CNC, Fresagem, Torneamento

Processo:

O Cnc Machining+deburrs, anodizou preto

Biocompatibilidade:

Atende aos padrões de nível médico

Faixa de tamanho:

Tamanhos personalizados disponíveis, normalmente de 1 mm a 200 mm

Tratamento térmico:

Disponível mediante solicitação

Recursos de material:

Produto de alumínio, produto de cobre

Especificação:

200*300*260

Material:

Aço inoxidável, titânio, alumínio

Espessura da parede:

0,1 mm - 3,0 mm

Tolerância ao corte a laser:

± 0,10 mm (± 0,004

Tempo de espera:

2-4 semanas dependendo do tamanho do pedido

Pacote de Transporte:

Caixa de plástico; Caixa de madeira

Detalhes da embalagem:

Caixa de papelão para embalagem a vácuo

Destacar:

Grade 304 Stainless Steel Medical Machining Parts

Biocompatible CNC Milling Parts

Tight Tolerances Precision Medical Components

Descrição do produto

304 316L Stainless Steel Medical Equipment Precision CNC Milling Parts

Product Overview

High-precision, miniaturized, and complex-shaped components manufactured through Computer Numerical Control (CNC) milling processes using Grade 304 and Grade 316L stainless steel. These materials provide excellent corrosion resistance, biocompatibility, and mechanical properties for demanding medical applications.

Manufacturing Process Details

Processing Stage	Key Details & Characteristics
Primary Material	Austenitic Stainless Steel: 304 (General corrosion resistance) / 316L (Enhanced corrosion & pitting resistance, lower carbon content)
Core Machining	Multi-axis (3/4/5-axis) Precision CNC Milling
Key Capabilities	Complex contouring, micro-milling, deep cavity machining, threading, undercutting
Tolerance Control	Extremely tight dimensional and geometric tolerances, typically within ±0.01mm to ±0.05mm (±0.0004" to ±0.002")
Surface Finish	Fine machined finishes; can achieve Ra < 0.8 µm (32 µin) or better. Optional electropolishing for enhanced performance
Secondary Operations	Deburring, cleaning, passivation (for 316L especially), ultrasonic cleaning, laser marking
Quality Assurance	100% Dimensional inspection (CMM, Optical Comparators), material certification, documentation per ISO 13485

Applications & Uses

These precision components serve as critical building blocks within various medical devices and systems:

Surgical Instruments: Components for laparoscopic tools, surgical handpieces, biopsy devices, orthopedic instruments
Diagnostic & Imaging Equipment: Probes, sensor housings, connectors, and brackets for MRI, CT, ultrasound, and patient monitoring systems
Implantable Device Components: Structural parts, housings, and connectors for pacemakers, neurostimulators, drug pumps (primarily 316L)
Dental & Orthopedic Devices: Custom abutments, surgical guide components, small bone plates, and trial instrument parts
Drug Delivery Systems: Precision parts for insulin pumps, inhalers, and infusion sets
Laboratory & Analysis Equipment: Components for fluidic systems, valves, and connectors in automated analyzers

Technical Specifications

Parameter Category	Specification Details
Material Standards	ASTM A240 (304 / 316L), ISO 7153-1, ISO 5832-1 (316L for implants)
Primary Process	Precision CNC Milling (3/4/5-Axis)
Standard Tolerance	ISO 2768-mK or better. Commonly held at ±0.025 mm (±0.001")
Geometric Tolerance	Straightness, flatness, concentricity typically within 0.01mm - 0.03mm
Surface Roughness	Standard: Ra 1.6 µm (63 µin). High-Precision: Ra 0.4 µm - 0.8 µm (16-32 µin) achievable
Part Size Range	Typically from <1 mm to 300 mm in maximum dimension
Key Features	Thin walls, micro-holes, complex 3D contours, fine threads, high aspect ratio features
Biocompatibility	316L is preferred for prolonged internal contact. Both grades comply with ISO 10993-1 evaluation
Surface Treatment	Passivation per ASTM A967, Electropolishing (common for 316L)
Cleanliness & Packaging	Cleaned to particulate-free standards, packaged in controlled environments
Quality Standards	Manufactured under quality management system compliant with ISO 13485:2016
