Effortless Cleaning Solution

CNC lathe milling
December 25, 2025
Category Connection: CNC Lathe Milling
Chat Now Contact Us
Tags:
#CNC Precision Milling #CNC Precision Milling Services #CNC Milling Services
Brief: We tested it—see the highlights and what to expect in real operation. This video demonstrates the Customized 304 Stainless Steel Precision CNC Milling Inclined Hole Sprayer in action, showcasing how its angled face design enables precise directional fluid delivery in complex industrial setups. Watch as we explore its integration into CNC machining, semiconductor processing, and automated coating systems, highlighting the critical role of its compound-angle geometry for optimal spray targeting and efficiency.
Related Product Features:
  • Custom angled face design enables precise off-axis spray targeting from complex surface geometries.
  • Constructed from corrosion-resistant AISI 304 stainless steel for durability and cleanability in various industrial fluids.
  • Manufactured using 5-axis CNC precision milling for accurate compound angles and orifice placement.
  • Offers customizable orifice configurations including single hole, multi-hole array, or machined slot designs.
  • Features tight tolerances with face angle accuracy of ±0.2° and orifice position tolerance of ±0.05 mm.
  • Suitable for high-pressure applications up to 70 bar (1000 psi) with potential for higher ratings.
  • Available with various mounting interfaces including flanges, external/internal threads, or custom geometries.
  • Provides versatile applications in precision manufacturing, semiconductor processing, and food/pharmaceutical industries.
FAQs:
  • What is the primary advantage of the angled face design on this sprayer?
    The angled face allows the nozzle to be mounted flush into surfaces or manifolds while directing the spray at a precise off-axis angle. This is essential for optimal spray impact in constrained spaces and for applications where standard perpendicular outlets are not feasible, such as in multi-axis CNC machines or robotic coating systems.
  • What materials and manufacturing processes are used for this sprayer?
    The sprayer is made from AISI 304 stainless steel, chosen for its excellent corrosion resistance and suitability for food and industrial fluids. It is manufactured using 5-axis CNC precision milling, which is critical for achieving the complex compound angles and accurate orifice placement with tight tolerances.
  • Can the sprayer be customized for specific application needs?
    Yes, the sprayer is fully customizable. You can specify the face angle, orifice type (single hole, multi-hole, or slot), orifice size, flow channel design, and mounting configuration. This flexibility makes it ideal for tailored solutions in sectors like semiconductor manufacturing, automated spraying, and pharmaceutical processing.
  • What quality assurance and testing are provided with these nozzles?
    Each nozzle undergoes full dimensional inspection via CMM to verify critical angles, positions, and sizes. We also offer sample flow and spray pattern testing upon request, and provide comprehensive documentation including inspection reports and material certification to ensure performance and reliability.
Related Videos

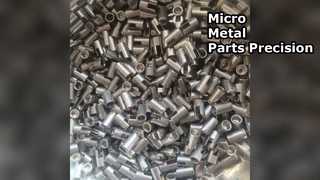

CNC Milling Small Parts 304 316L Stainless Steel 00:27

CNC Milling Small Parts 304 316L Stainless Steel
CNC lathe milling
January 02, 2026

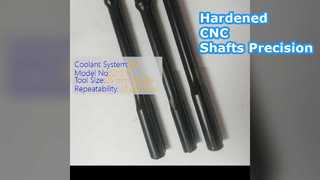

Hardened CNC Shafts Blackening Heat Treatment 00:27

Hardened CNC Shafts Blackening Heat Treatment
CNC lathe milling
January 02, 2026

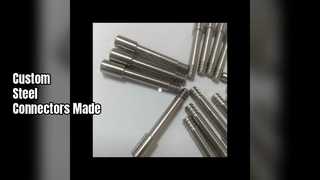

Custom Steel Connectors Precision Made 00:40

Custom Steel Connectors Precision Made
CNC lathe milling
January 02, 2026
304 stainless steel capillary slotted scale puncture biopsy needle 00:37

304 stainless steel capillary slotted scale puncture biopsy needle
Other Videos
January 15, 2026
Stainless steel medical device spare parts 00:24

Stainless steel medical device spare parts
Other Videos
January 15, 2026

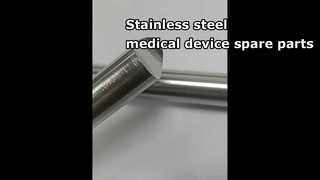

304 stainless steel medical device spare parts 00:26

304 stainless steel medical device spare parts
Other Videos
January 15, 2026
Stainless Steel Capillary Tube Puncture Needle Cannula Slot Scale 00:27

Stainless Steel Capillary Tube Puncture Needle Cannula Slot Scale
Stainless steel needle
September 11, 2025

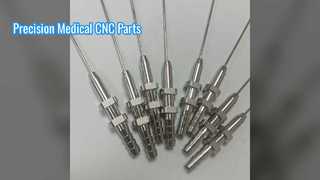

Precision Medical Parts CNC Milling 00:43

Precision Medical Parts CNC Milling
Medical Machining Parts
January 14, 2026

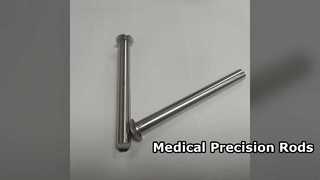

304 Stainless Steel CNC Rod Precision Medical Parts 00:30

304 Stainless Steel CNC Rod Precision Medical Parts
Medical Machining Parts
January 14, 2026

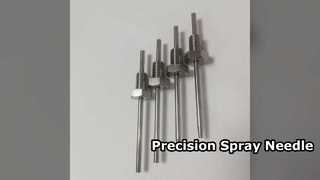

Precision Spray Needle 304 Stainless Steel 00:59
