| Brand Name: | yue lin sen |
| Model Number: | Y2662 |
| MOQ: | 100pcs |
| Price: | 0.5-20 |
| Payment Terms: | T/T |
| Supply Ability: | 5000000pcs |
| Parameter Category | Specification | Details & Options |
|---|---|---|

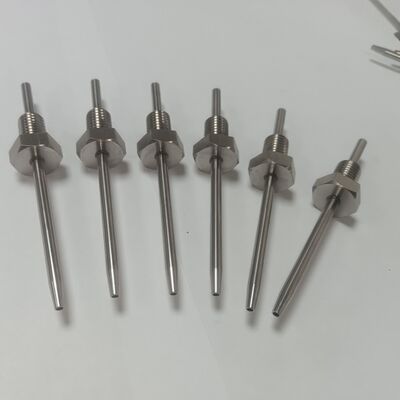

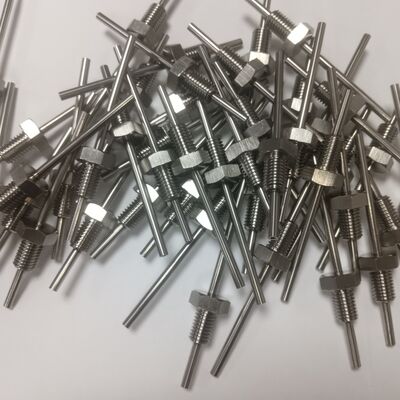

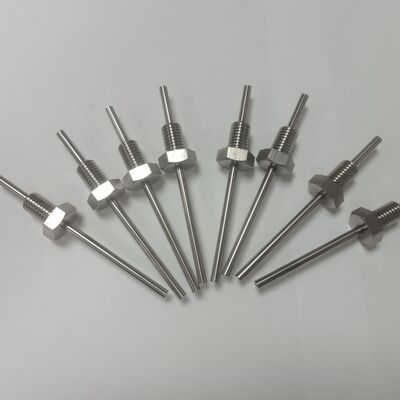

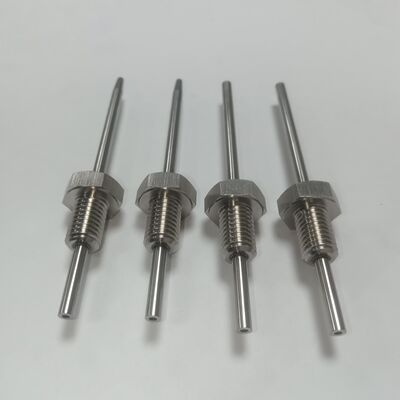

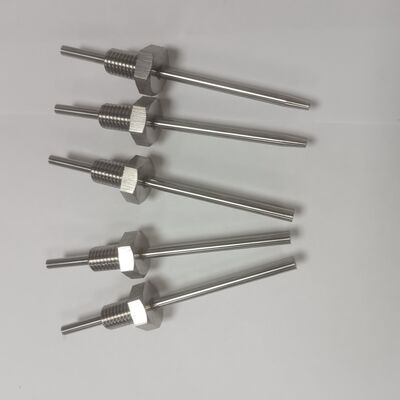

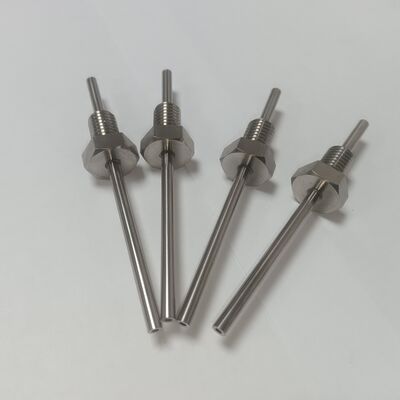

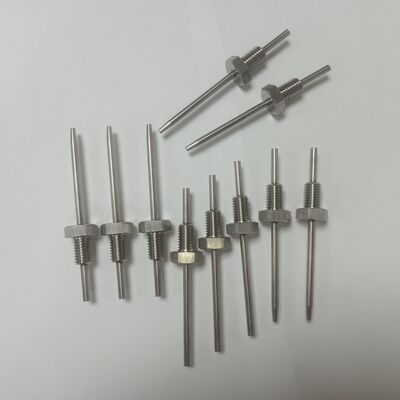

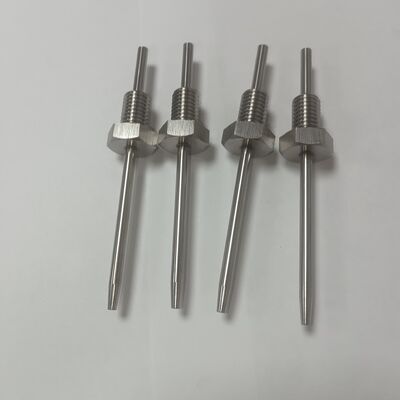

| Material | Base Material | 304 Stainless Steel (ASTM A276) - Good machinability, strength, and corrosion resistance |
| Construction | Manufacturing Method | CNC Machined from Solid Bar Stock - Allows for complex internal geometries |
| Connection & Mounting | Thread Type | External Threads: Metric (M4x0.7, M6x1), Unified (10-32 UNF, 1/4-28 UNF) Internal Threads: For accepting fittings |
| Fluid Pathway | Internal Channel Diameter | Typical Range: 0.2 mm to 2.0 mm - Custom sizes available |
| Dimensions | Overall Length | Common: 15 mm to 100 mm - Fully customizable |
| Performance | Operating Pressure Range | High-Pressure Capable: 100 to 1000+ bar (1500 to 15,000+ psi) |
| Tolerances | Orifice Diameter Tolerance | High Precision: ±0.005 mm Standard Precision: ±0.01 mm |
| Surface Finish | Internal Fluid Path & Orifice | Electropolished to Ra ≤ 0.2 µm recommended for smooth flow |
| Quality Assurance | Inspection | Microscopic inspection of orifice, CMM for critical dimensions |
| Lead Time | Prototypes | 3-6 weeks Production: 6-10 weeks (depending on complexity) |
