| Brand Name: | yeu lin sen |
| Model Number: | Y1662 |
| MOQ: | 100pcs |
| Price: | 0.5-20 |
| Payment Terms: | T/T |
| Supply Ability: | 5000000pcs |
| Parameter Category | Specification | Details & Options |
|---|---|---|

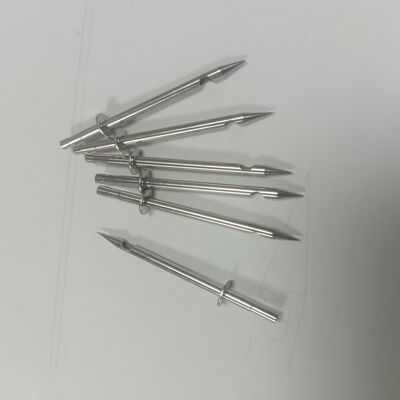

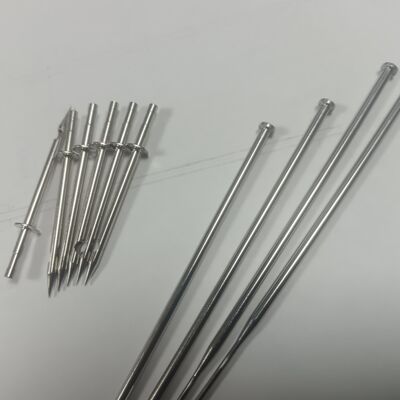

| Material | Tubing Material | 304 Stainless Steel (Medical Grade, ASTM A269/A632) - Excellent corrosion resistance, strength, and formability |

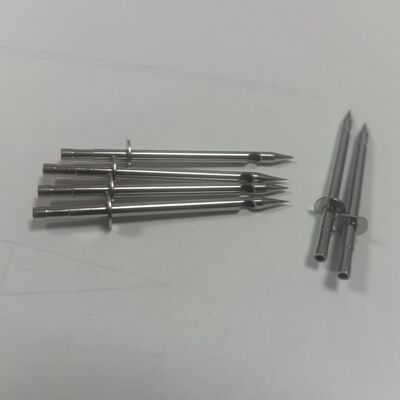

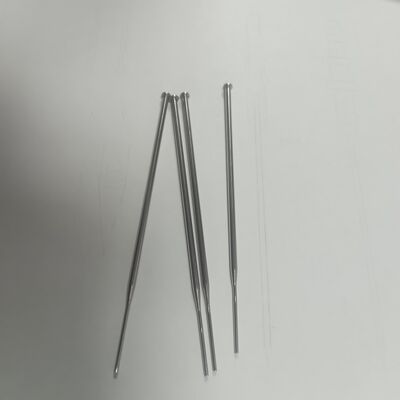

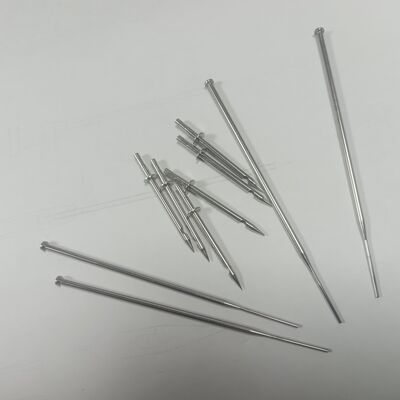

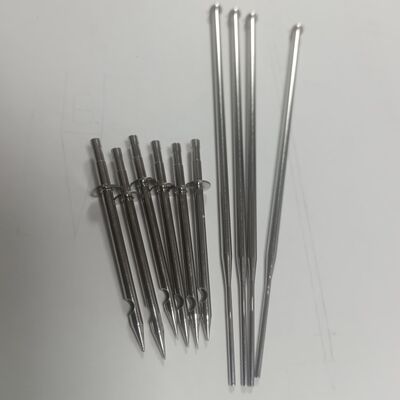

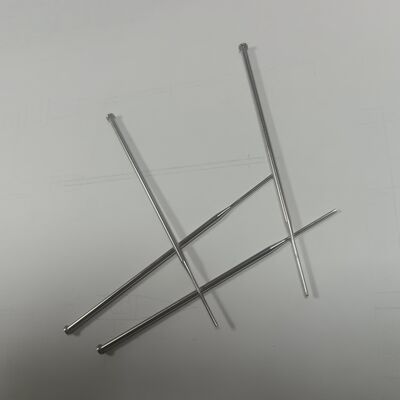

| Design | Tip Configuration | Closed Tip: Sharpened for penetration (Bevel, Trocar, Pencil Point) |

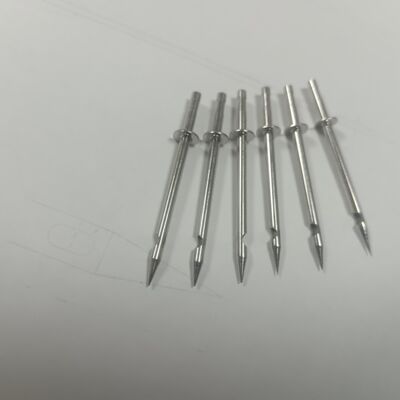

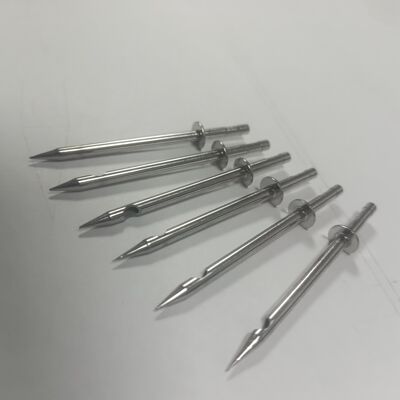

| Side-Hole Configuration |
Number of Holes: 1, 2, 3, or more Hole Pattern: Radial, helical, or custom Hole Shape: Round, oval, or slot configurations |
|

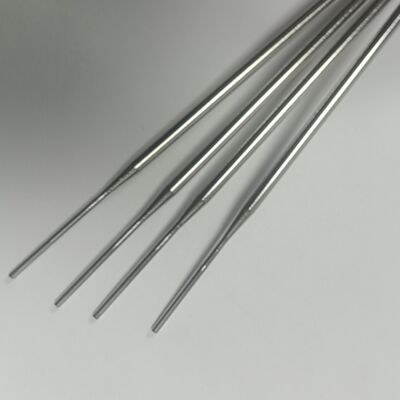

| Dimensions | Outer Diameter (OD) | Typical Range: 0.3 mm to 2.0 mm (30G to 14G equivalent) |
| Inner Diameter (ID) | Typical Range: 0.1 mm to 1.5 mm (dependent on wall thickness) | |
| Wall Thickness | Customizable for specific pressure requirements | |
| Overall Length | Common: 50 mm to 300 mm - Custom lengths available | |
| Hole Specifications | Hole Diameter | Typical: 0.05 mm to 0.5 mm - Proportional to tubing OD/ID |
| Hole Drilling Tolerance | Position: ±0.05 mm Diameter: ±0.01 mm |
|
| Performance | Flow Characteristics | Designed for radial or angled fluid dispersion - Reduces high-velocity forward jetting |
| Pressure Rating | Standard designs suitable for pressures up to 50-300 bar (700-4500 psi) | |
| Surface Finish | External & Internal | Electropolished - Smooth finish (Ra ≤ 0.4 µm) minimizes flow resistance |
| End Connection | Medical | Standard Luer Lock Hub (ISO 594) |
| Industrial/Lab | Luer Lock, ¼-28 flat-bottom fittings, compression fittings, or custom | |
| Tolerances | Overall Dimensions | Length: ±0.5 mm OD: ±0.01 mm |
