| Brand Name: | yue lin sen |
| Model Number: | Y 6621 |
| MOQ: | 100 pcs |
| Price: | 0.5-20 |
| Payment Terms: | T/T |
| Supply Ability: | 5000000pcs |
| Parameter Category | Specification | Details & Options |
|---|---|---|

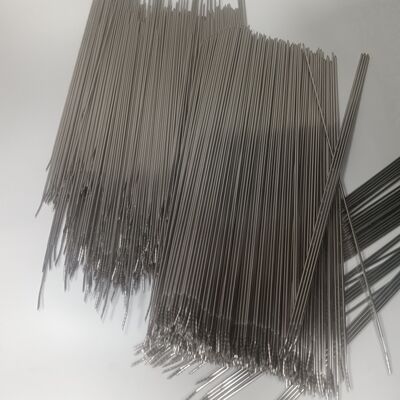

| Material | Tubing Material | 304 or 316L Stainless Steel (Medical Grade). 316L offers superior corrosion resistance for prolonged contact with bodily fluids. |

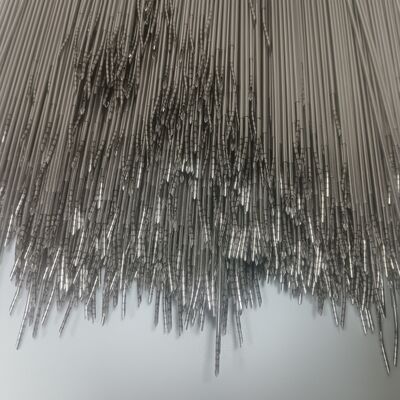

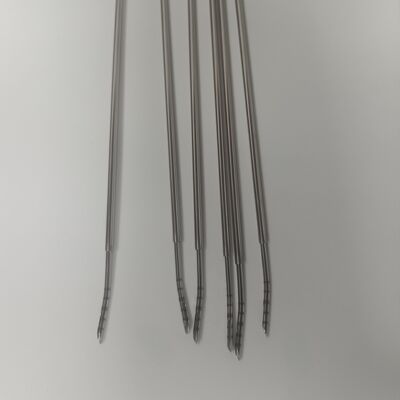

| Design Features | Slot Configuration | Single Slot or Multiple Slots near the tip. Slot length typically 10-20mm for tissue entry and fluid inflow. |
| Graduation Markings | Laser-etched depth scale in centimeter (cm) and/or millimeter (mm) increments along the shaft. | |
| Tip Design | Chiba Style (Long Bevel): Common for FNA. Trocar Point: For easier penetration of tougher tissues. Franseen or Westcott: For improved core retention. |
|
| Dimensional Specifications | Outer Diameter (Gauge) | Fine Needle Aspiration (FNA): 20G (0.90mm), 21G (0.82mm), 22G (0.71mm), 25G (0.50mm). Core Biopsy: 14G (2.11mm), 16G (1.65mm), 18G (1.27mm). |
| Length | Common: 50 mm, 90 mm, 100 mm, 150 mm, 200 mm. Custom lengths available. | |
| Slot Dimensions | Length: 5-25 mm. Width: 0.3-1.0 mm (proportional to needle gauge). | |
| Performance | Flow/Aspiration Efficiency | Slotted design improves sample yield by preventing tissue plugging and providing alternative inflow paths. |
| Surface Finish | Internal & External | Electropolished to smooth finish (Ra ≤ 0.4 µm) to minimize tissue drag and friction. |
| Hub & Connection | Hub Type | Clear or opaque hub with Standard Luer Lock (ISO 594) connection. May include side port for syringe attachment. |
| Sterility & Packaging | Sterilization | Ethylene Oxide (EtO) or Gamma Irradiation. |
| Quality & Standards | Biocompatibility | ISO 10993 compliant (Cytotoxicity, Sensitization, Irritation). |
