| Brand Name: | yue lin sen |
| Model Number: | Y 665 |
| MOQ: | 100 pcs |
| Price: | 0.5-20 |
| Payment Terms: | T/T |
| Supply Ability: | 5020000pcs |
| Parameter Category | Specifications & Technical Details |
|---|---|
| Material & Biocompatibility | Needle Material: 316L Stainless Steel (UNS S31603, ASTM A967 compliant) Biocompatibility: Compliant with ISO 10993 for relevant contact |

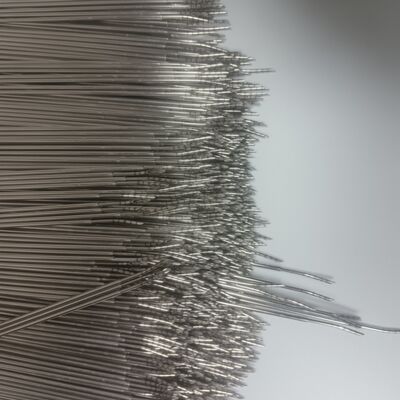

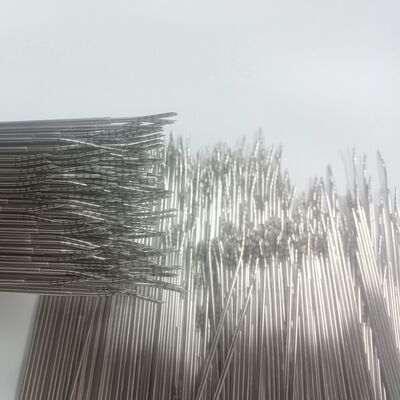

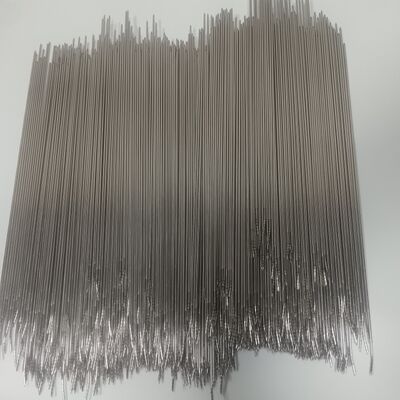

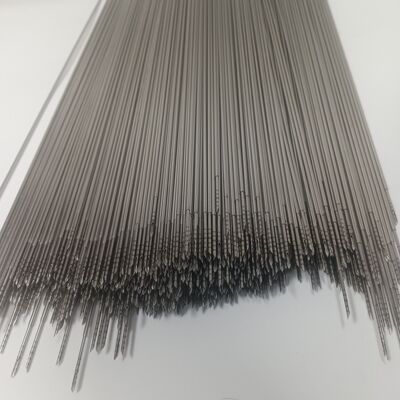

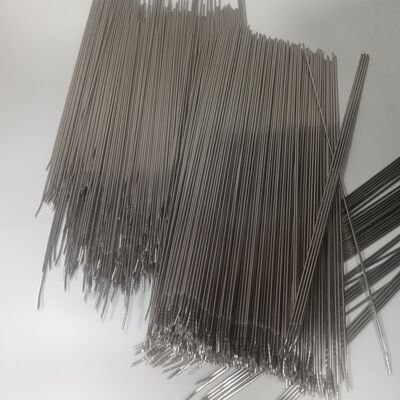

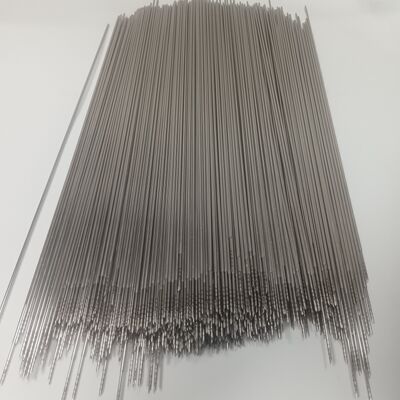

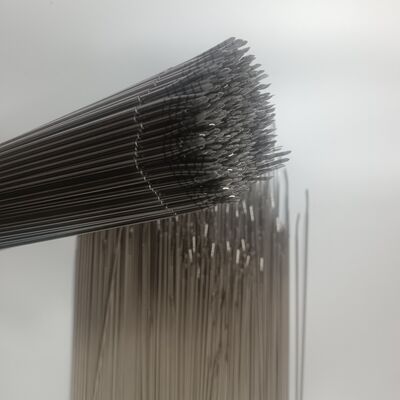

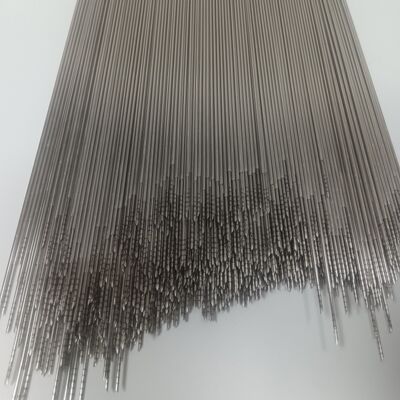

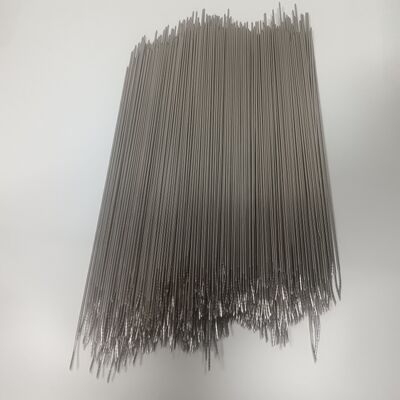

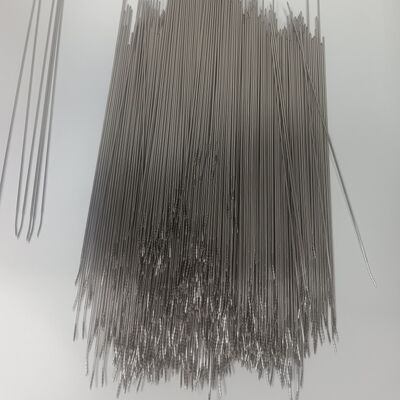

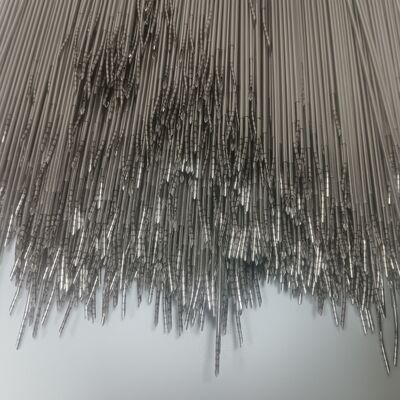

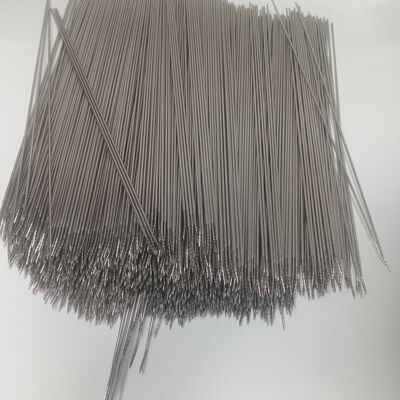

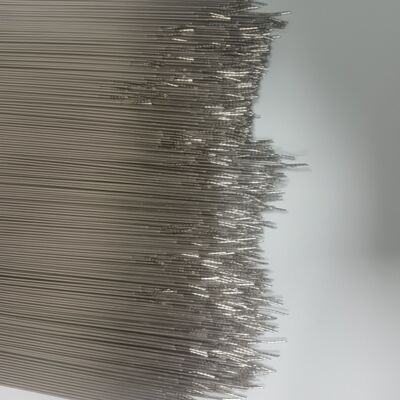

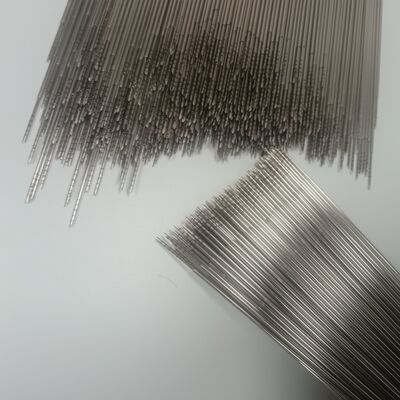

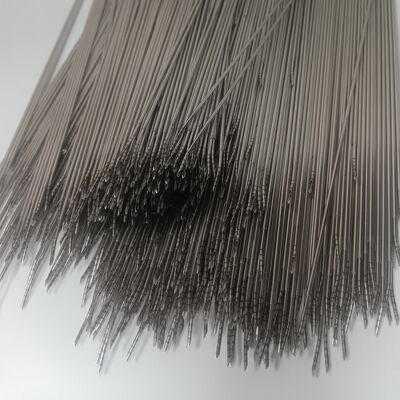

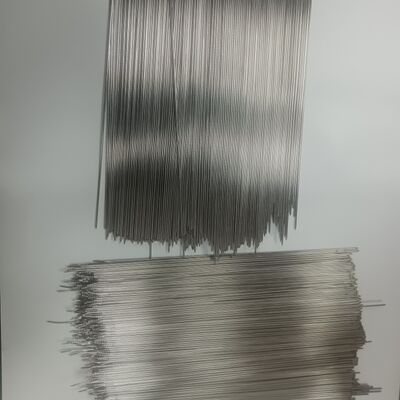

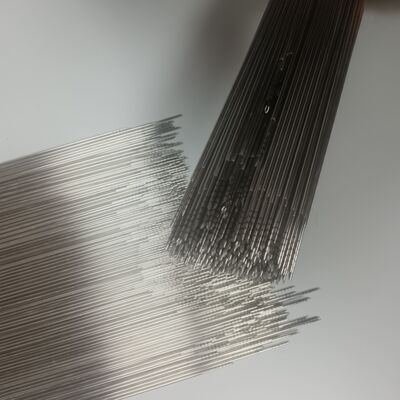

| Needle Design & Features | Structure: Hollow capillary tube Tip Design: Sharp, beveled point (12°-20° bevel angle) Slot Feature: One or multiple lateral slots near tip Depth Graduations: Permanent laser-etched markings Hub: Standard luer lock or custom connection |
| Dimensional Specifications | Outer Diameter: 0.3 mm – 1.2 mm (30G to 18G) Inner Diameter: 0.1 mm – 0.8 mm Overall Length: 20 mm – 100 mm Slot Dimensions: Length: 1-3 mm; Width: 0.1-0.3 mm |
| Precision Tolerances | OD/ID Tolerance: ±0.01 mm Length Tolerance: ±0.2 mm Slot Position Tolerance: ±0.05 mm from tip Graduation Marking Accuracy: ±0.1 mm |
| Sterilization & Packaging | Sterilization: Compatible with Steam Autoclave, EtO, Gamma Radiation Packaging: Individually packaged in sterile blister pouches |
| Quality Assurance | Inspection: 100% visual inspection under magnification Functionality: Sample flow testing for slot functionality |
| Customization Options | Dimensions: Fully customizable OD, ID, length, bevel angle Slot Configuration: Custom number, size, and pattern Graduations: Custom scale and interval Hub/Style: Custom hub design for specific devices |
| Regulatory Compliance | For Medical Devices: Manufactured under ISO 13485 quality system Classification depends on intended use (typically Class I or II) |
