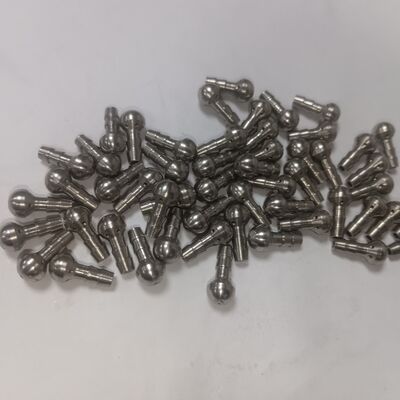

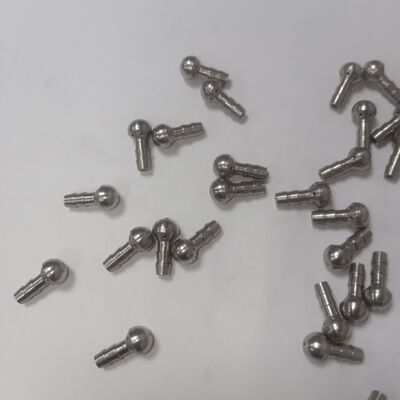

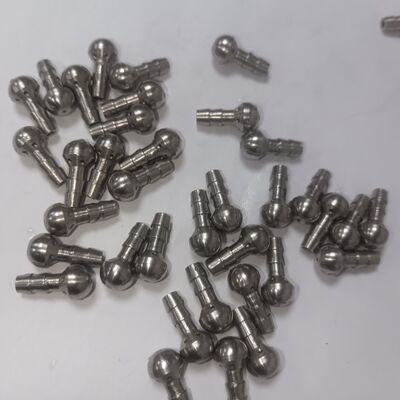

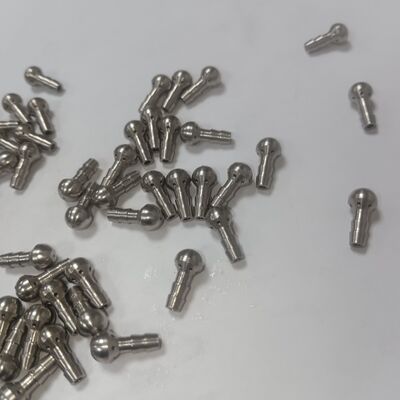

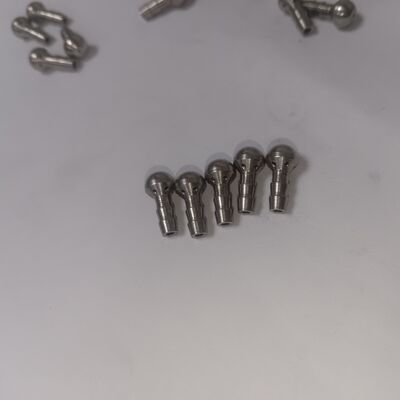

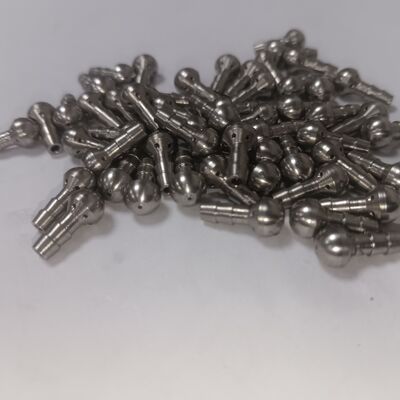

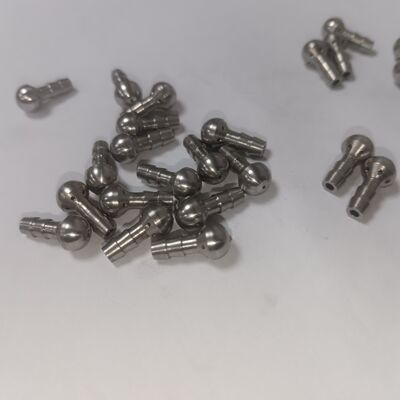

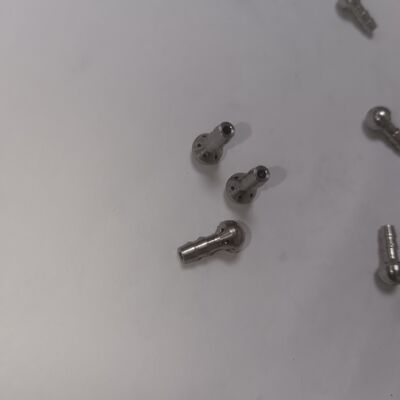

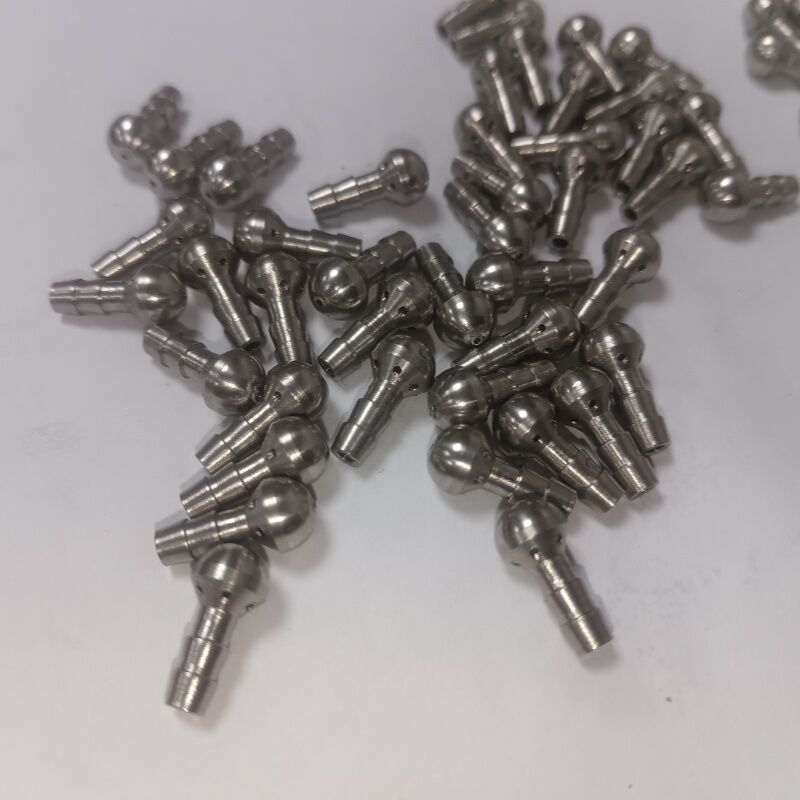

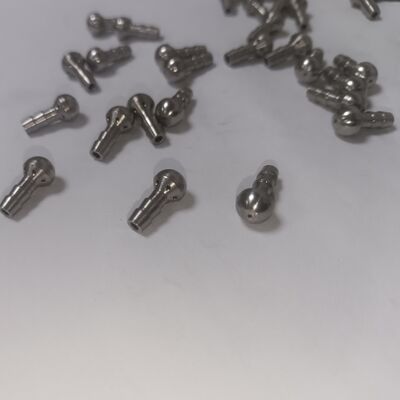

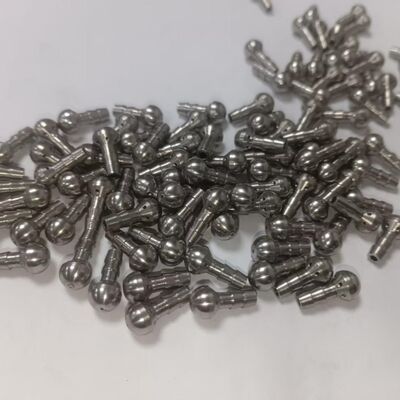

Customized 304 Stainless Steel Precision CNC Milling Inclined Hole Sprayer

Product Application:

This product is a high-precision, directional fluid delivery nozzle designed for applications requiring accurate spray targeting from a complex surface geometry. The angled face allows the nozzle to be integrated into systems where a standard perpendicular outlet is not feasible or optimal.

• Precision Manufacturing & Machining: Targeted coolant/lubricant delivery in multi-axis CNC machines, EDM (Electrical Discharge Machining) work cells, and grinding applications, where the spray must hit a specific tool-workpiece interface at an oblique angle.

• Semiconductor & Electronics Manufacturing: Chemical or DI (Deionized) water spray nozzles in wafer cleaning tools, etching baths, or PCB (Printed Circuit Board) cleaning lines, where space is constrained and spray directionality is critical.

• Automated Spraying & Coating: Paint, adhesive, or sealant application heads on robotic arms, designed to follow complex contours and spray from the optimal angle for uniform coverage.

• Food & Pharmaceutical Processing: Sanitary spray balls or cleaning nozzles inside tanks, vats, or processing vessels, designed with angled faces to ensure complete surface coverage and no shadow areas.

• Analytical & Laboratory Equipment: Specialized rinse or reagent nozzles inside automated analyzers where fluid must be directed into specific chambers or onto sensors from a non-standard angle.

Product Description:

We specialize in manufacturing custom spray nozzles with precision-machined angled faces from 304 stainless steel using advanced multi-axis CNC milling technology. The defining feature is a machined face set at a specific compound angle, into which the spray orifice(s) are precisely drilled or milled. This allows the entire nozzle body to be mounted flush or integrated into a surface or manifold, while the spray is emitted at the designed off-axis angle. This design is essential for achieving optimal spray impact, maximizing cleaning/coating efficiency, and fitting into mechanically constrained spaces. Constructed from corrosion-resistant 304 stainless steel, these nozzles are robust, cleanable, and suitable for a wide range of industrial fluids. We offer complete customization of the face angle, orifice type (single hole, multi-hole, slot), orifice size, flow channel design, and mounting configuration.

Product Technical Parameters:
