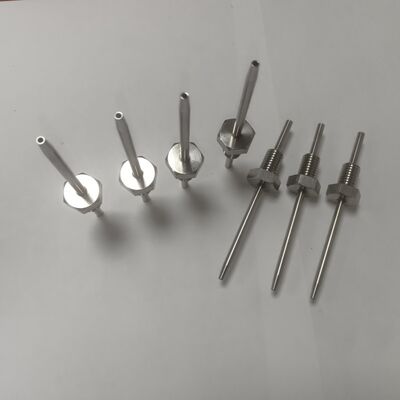

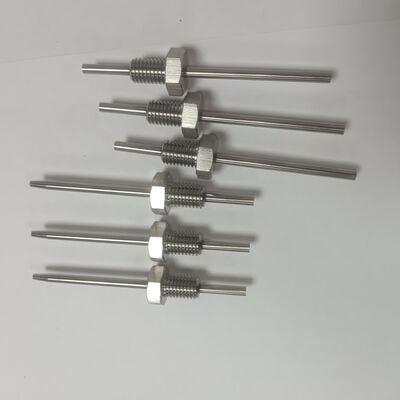

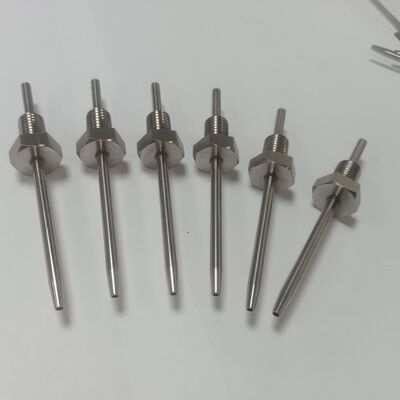

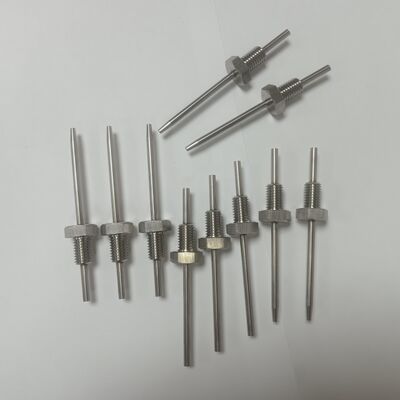

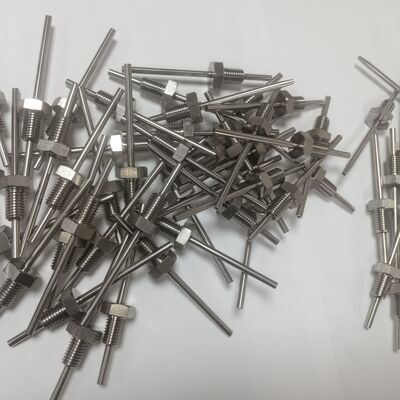

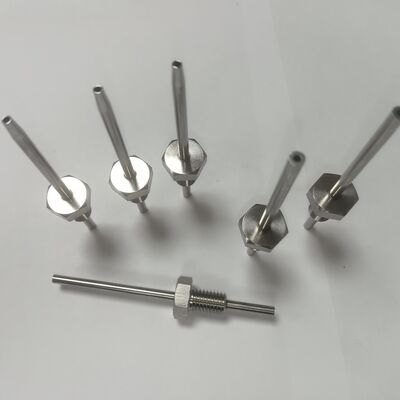

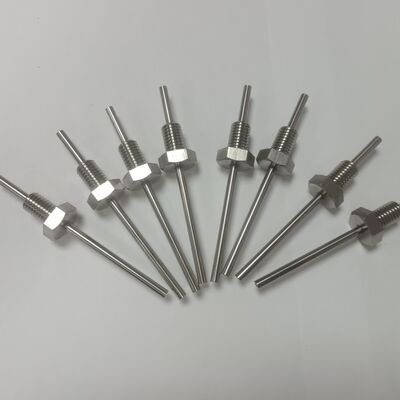

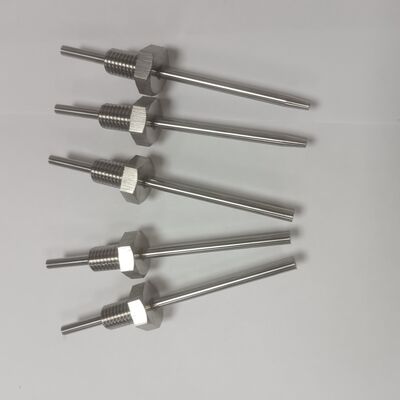

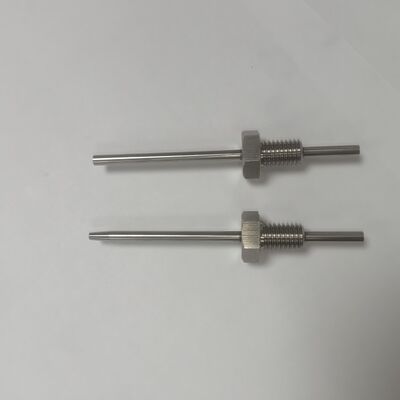

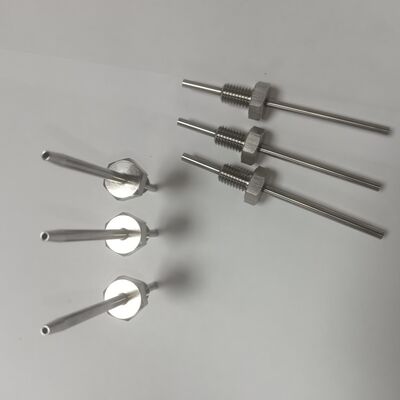

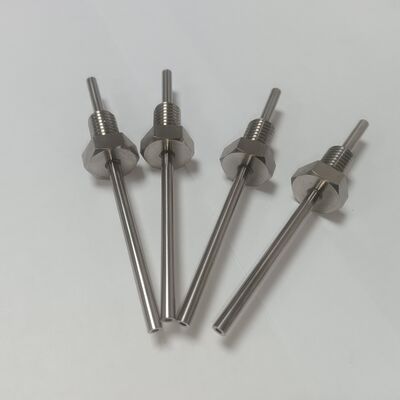

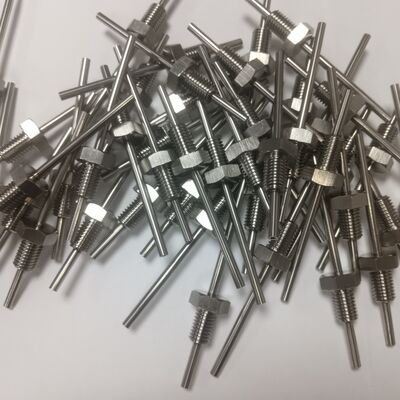

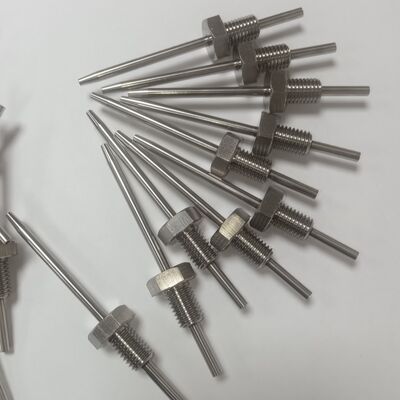

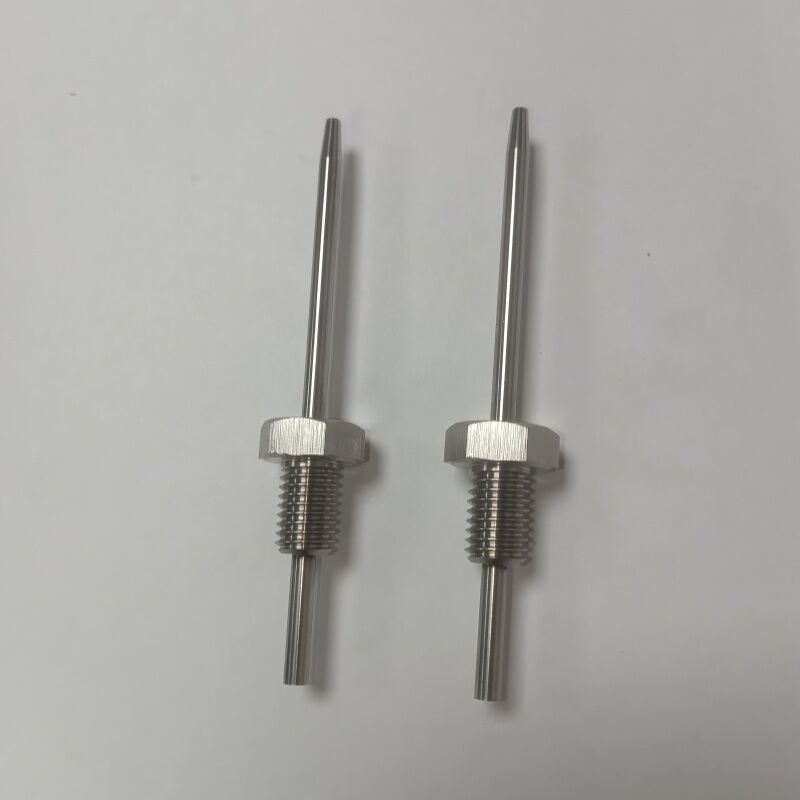

Customized 304 Stainless Steel Hexagonal Thread Experimental Spray Needle
This is a high-precision, modular fluid delivery component designed for laboratory research, analytical instrumentation, and pilot-scale medical device development where customizable spray performance and secure connection are critical.
Experimental & Research Equipment: Used as a precision nozzle in prototype nebulizers, lab-scale spray dryers, aerosol generation systems, and micro-dispensing setups for drug formulation research.
Analytical Instrumentation: Serves as a sample introduction spray needle in mass spectrometry (ESI, APCI sources), chromatography detectors, or chemical analysis devices.
Medical Device Prototyping: Acts as a functional component in developing new surgical irrigation devices, inhalers, or cosmetic micro-spraying tools before mass production.
Industrial R&D: Applied in coating technology research, fuel injector testing, or any application requiring precise, adjustable liquid atomization.
We provide custom CNC milling services to produce precision hexagonal-threaded spray needles from 304 stainless steel. This component is engineered for experimental and low-volume production applications, offering a balance of performance, durability, and customization. The design integrates a hexagonal threaded body for tool-assisted assembly and secure, leak-free mounting into a matching manifold or handpiece, and a precision-machined spray tip (conical, cylindrical, or with a jewel orifice) for controlled atomization. The internal flow channel is optimized for consistent performance. Made from corrosion-resistant 304 stainless steel, it is suitable for use with a wide range of chemicals and can be sterilized. The hexagonal profile allows for easy integration and adjustment in experimental setups. We offer full customization of all dimensions, thread specifications, spray angle, and orifice size to meet exact research or prototype requirements.
| Category | Parameter | Details / Specification |
|---|---|---|
| Base Material | Material Standard | AISI 304 Stainless Steel (UNS S30400) |
| Material Properties | Good corrosion resistance, machinability, and mechanical strength. Suitable for autoclaving. | |
| Design & Geometry | Component Type | Hexagonal Body Spray Needle / Nozzle |
| Thread Type | External Hexagonal Thread (e.g., M6, M8, M10 x 1.0, or custom size) for wrench assembly. May include a separate internal Luer thread or taper at the proximal end for fluid input. | |
| Spray Tip Design | Conical convergence, cylindrical orifice, or flat fan design. Can integrate a press-fit sapphire or ruby jewel orifice for ultra-precise, wear-resistant spray. | |
| Flow Channel | Straight or tapered internal bore, precision honed for consistent flow. | |
| Dimensions | Hexagon Across Flats (A/F) | Customizable (e.g., 5mm, 7mm, 10mm). |
| Overall Length (OAL) | Customizable, typically from 15 mm to 60 mm. | |
| Orifice Diameter | Customizable from 0.1 mm to 0.5 mm for standard metal tips. Jewel orifices down to 0.05 mm. | |
| Spray Angle | Customizable (e.g., 15°, 30°, 60°, 80° fan). | |
| Manufacturing & Tolerance | Primary Process | Precision CNC Milling and Micro-Drilling. |
| Thread Tolerance | ISO 6g standard for external threads. | |
| Orifice Tolerance | Diameter tolerance typically ±0.005 mm for critical applications. | |
| Concentricity | High concentricity (<0.03mm TIR) between orifice, internal channel, and external threads. | |
| Surface & Finish | Surface Finish | External surfaces: machined or polished. Internal flow path: smooth finish or electropolished (Ra ≤ 0.4 µm) to prevent clogging. |
| Post-Processing | Passivation available per ASTM A967 to enhance corrosion resistance. | |
| Quality & Compliance | Cleanliness | Cleaned and packaged suitable for laboratory or prototype use. |
| Inspection | 100% dimensional verification. Sample flow/spray pattern testing available upon request. | |
| Documentation | Dimensional drawing and inspection report provided. Material certification available. |
