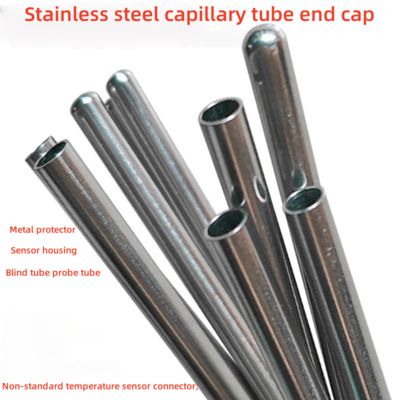

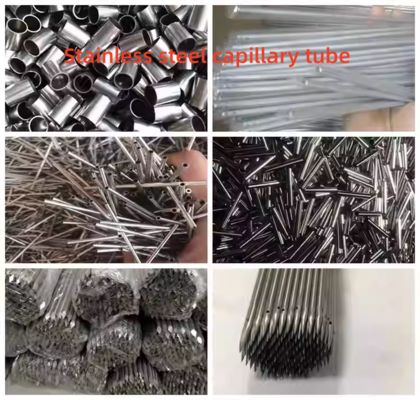

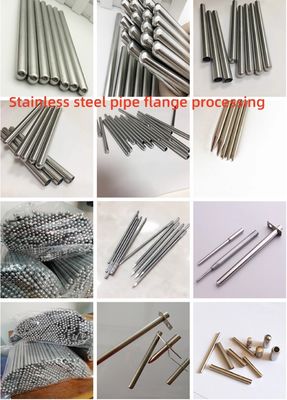

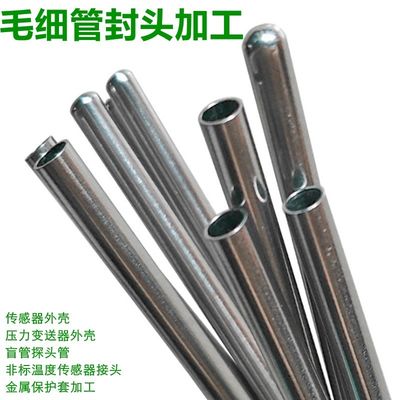

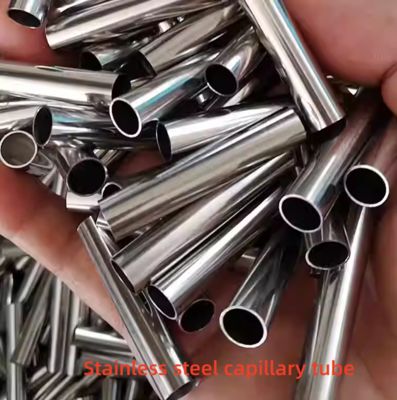

304 stainless steel tube sensor temperature sensor thin-walled tube sensor.
Product Description
This product is a high-performance Temperature Sensor engineered from premium 304 or 316L Stainless Steel pipe or housing. It is specifically designed for applications demanding exceptional corrosion resistance, durability, and reliability in harsh environments. The key differentiator is its capability for custom non-standard shapes, allowing for perfect integration into complex or space-constrained systems where off-the-shelf sensors are not suitable.
| Product Attribute | Description |
|---|---|
| Core Product | Temperature Sensor (e.g., RTD, Thermocouple, Thermistor) |
| Primary Material | 304 or 316L Stainless Steel Pipe / Sheath |
| Key Feature | Fully Customizable Non-Standard Shapes & Dimensions |
| Target Applications | Chemical Processing, Pharmaceutical, Food & Beverage, Semiconductor, HVAC, Power Generation, Marine, and Specialized OEM Machinery. |
| General Benefits | Excellent corrosion resistance, high-temperature tolerance, robust mechanical strength, and long-term stability. |
The following parameters are typical and can be adjusted based on the specific custom requirements.
| Parameter Category | Specification | Notes |
|---|---|---|
| Sensor Material Options | 304 Stainless Steel: Good general corrosion resistance. 316L Stainless Steel: Superior corrosion resistance, especially against chlorides and acids. |
Material selection depends on the application media. |
| Sheath/Pipe Diameter | Customizable (e.g., from 3mm to 25mm or larger) | Diameter is tailored to fit the installation space and thermal response needs. |
| Sheath/Pipe Length | Fully Customizable | Designed to meet the exact immersion length requirement. |

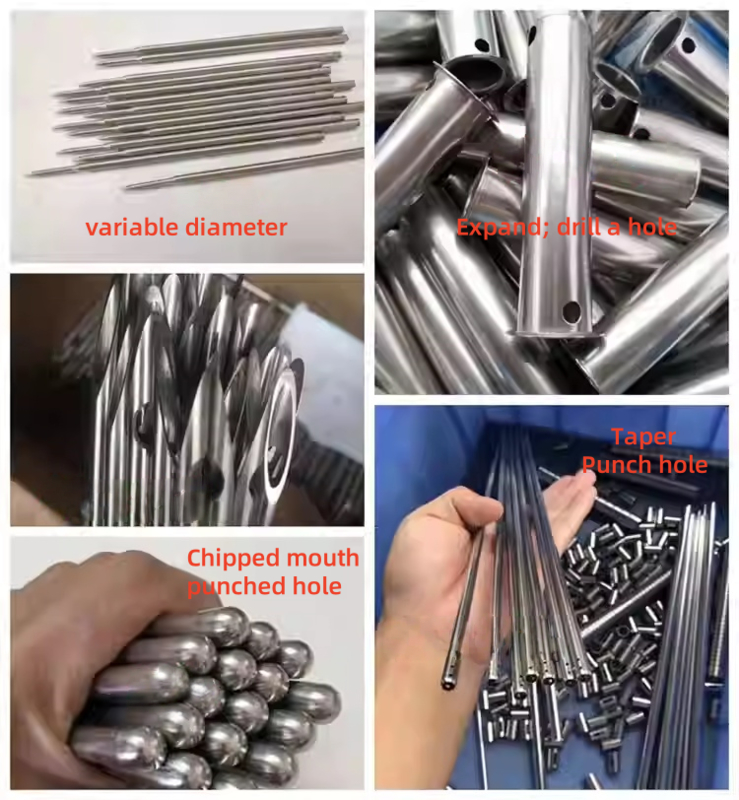

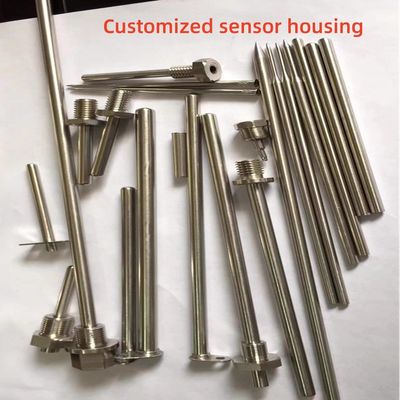

| Bending & Shape | Custom bends, coils, flanges, threads, or complex geometries. | CAD drawings can be used to define precise shapes for direct fit. |
| Temperature Range | Standard Range: -50°C to +500°C (-58°F to +932°F) Extended Range: Depending on sensor type and fill material, can be higher. |
The actual range depends on the internal sensing element and assembly. |
| Pressure Rating | Varies with sheath diameter, wall thickness, and material. | Designed to withstand the system's operating pressure. |
| Electrical Connection | Customizable (e.g., Terminal Head, Connector, Cable Exit, Flying Leads). | Chosen for environmental protection (IP rating) and ease of installation. |
| Accuracy / Class | Depends on the sensing element (e.g., RTD Class A, B; Thermocouple Standard or Special Limits). | Specified according to application precision requirements. |
The ability to create a non-standard shape provides significant benefits over using a standard, straight sensor.
| Advantage | Description |
|---|---|
| Perfect System Integration | The sensor can be designed to fit precisely into complex assemblies, avoiding interference with other components and eliminating the need for awkward adaptations. |
| Optimized Performance | Custom shapes ensure the sensing tip is positioned in the exact optimal location for accurate temperature measurement of the media (liquid, gas, or surface). |
| Space Efficiency | Ideal for compact equipment where a standard sensor would not fit. Bends and coils can be designed to maximize surface contact or length within a confined space. |
| Enhanced Durability | A custom-shaped sensor can be designed to minimize stress points and vibrations, leading to improved mechanical longevity and reliability. |
| Simplified Installation | Pre-formed shapes with specific mounting features (like flanges or brackets) can drastically reduce installation time and complexity, lowering overall costs. |
| Material Flexibility | The choice between 304 and 316L stainless steel allows for cost-effective solutions or maximum corrosion resistance, tailored to the specific environmental conditions. |
| Solution for Unique Problems | Provides an engineered solution for applications where no standard sensor exists, enabling innovation and functionality in specialized machinery and processes. |
