| Brand Name: | yue lin sen |
| Model Number: | Y556 |
| MOQ: | 100 pcs |
| Price: | 0.5-20 |
| Payment Terms: | T/T |
| Supply Ability: | 500000pcs5 |

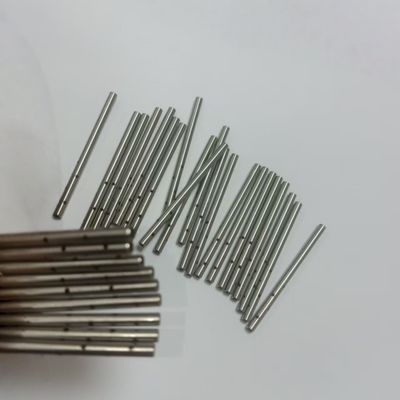

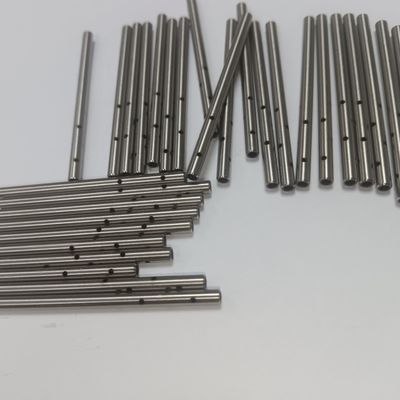

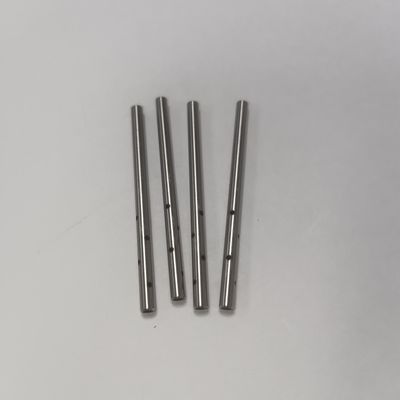

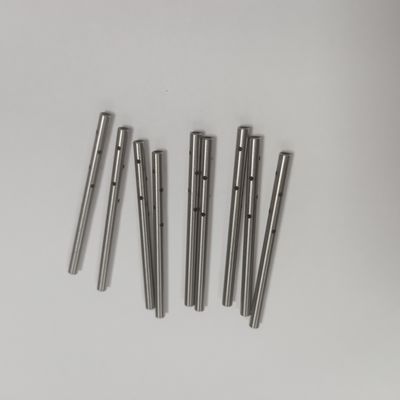

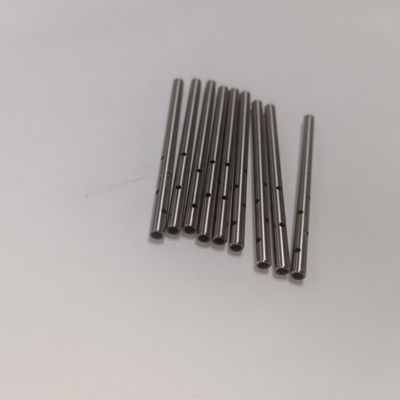

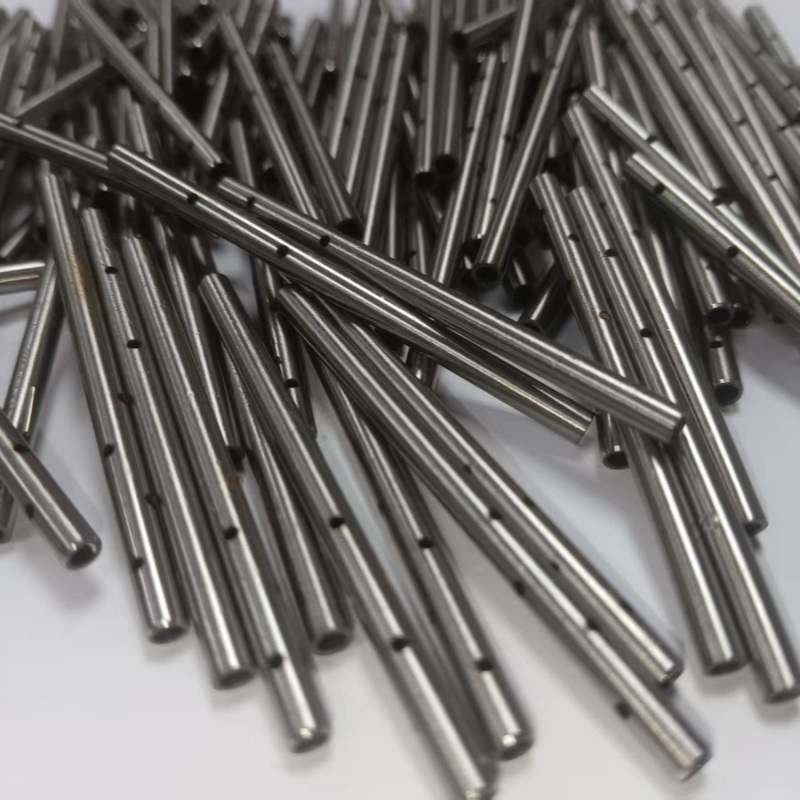

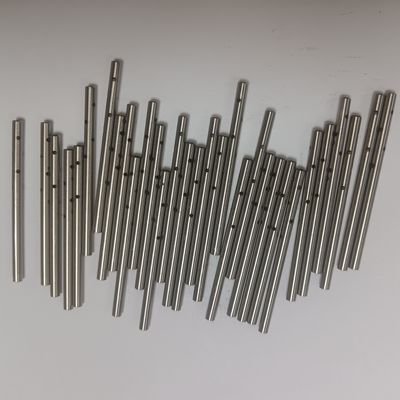

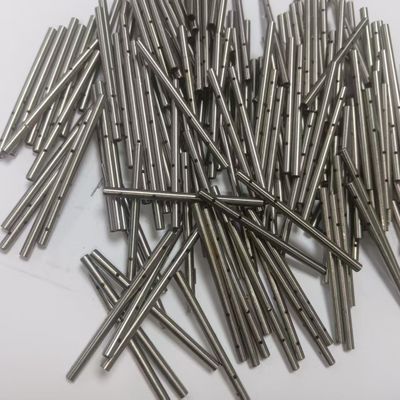

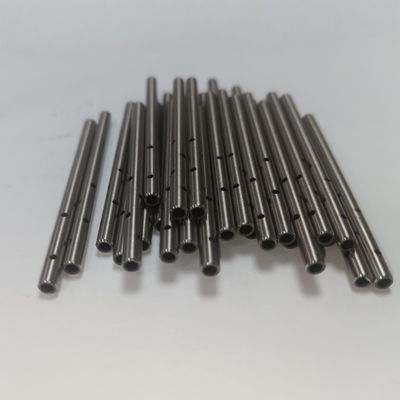

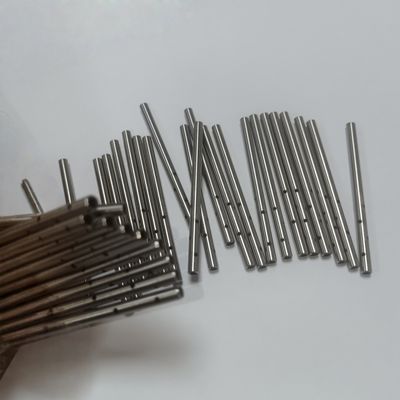

Precision Laser Cutting Punching And Grooving Of 304 Stainless Steel Capillary Tubes
Our service specializes in precision laser processing of 304 and 316L stainless steel capillary and medical-grade tubes. We utilize advanced laser technology to perform highly accurate cutting, drilling, and slotting, enabling the creation of complex miniature components from tubular stock. This process is ideal for producing parts with intricate features, exact geometries, and smooth edges, meeting the most demanding specifications for critical applications in medical and high-tech industries.
These precision laser-processed components are designed for advanced applications where complex geometries in small-scale metal tubing are required.
Minimally Invasive Medical Devices: Components for vascular stents, delivery systems, surgical catheters with side ports, endoscopic tools, and specialized biopsy needles.
Specialized Fluid Handling: Used in micro-dispensers, spray nozzles, fluidic circuits, and lab-on-a-chip devices requiring precise holes or slots.
Implantable Medical Components: Manufacturing of structural elements for implants that require specific patterns, anchoring features, or integration points.
Sensors and Probes: Fabrication of housings for pressure sensors, temperature probes, and other sensing elements that need custom apertures or mounting slots.
| Parameter Category | Details / Specifications |
|---|---|
| Base Material | 304 Stainless Steel, 316L Stainless Steel |
| Material Standard | ASTM A269, ASTM A632 (or equivalent) |
| Tube Type | Capillary Tube, Medical Tube |
| Outer Diameter (OD) | Customizable, typical range from 0.3mm to 12mm |
| Wall Thickness | Customizable, typically 0.05mm to 1.0mm |
| Primary Processing | Precision Laser Cutting, Drilling, Slotting |
| Laser Type | Fiber Laser |
| Feature Tolerance | ±0.02mm (depending on feature size and material thickness) |
| Minimum Feature Size | As small as 0.05mm (subject to material and geometry) |
| Heat Affected Zone (HAZ) | Minimized |
| Surface Finish | As-supplied, with minimal laser slag/debris |
